MANIFOLD CHRYSLER GEN II 426-572 HEMI DUAL QUAD CARBURATED
Availability:
Out-of-Stock
Description
Edelbrock part PN: 7524 Dual-Quad HEMI intake manifold is intended for use with Mopar Gen II (1964-71) 426-572 HEMI engines operating in the 2,500 to 6,500+ range. This new intake manifold is a single-plane Air-Gap design with a dual square-bore 4150 style carburetor pad. Carburetor spacing and height are the same as Mopar Performance dual-quad PN: P5153737, making it a direct bolt-on to all vehicles with a shaker hood. They also retain the same carburetor linkage location from the factory. The Dual-Quad HEMI is compatible with factory style cylinder heads, but optimized for use with Edelbrock Victor Jr. HEMI cylinder heads. Requires Edelbrock Coil Bracket PN: 8079 for use with OE style coils.
Chrysler:Gen II HEMI:426 (7.0L)/572 (9.4L)
Chrysler:Gen II HEMI:426 (7.0L)/572 (9.4L)
MANIFOLD CHRYSLER GEN II 426-572 HEMI DUAL QUAD CARBURATED - Part number: EDL-7524 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7524 - MANIFOLD CHRYSLER GEN II 426-572 HEMI DUAL QUAD CARBURATED engine-intake-manifold
Data sheet
- Position
- N/A
- Engine Make/Size
- Mopar 426-572 Hemi
- Emission
- N/A
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- RPM Range
- 2500-6500
- Number Of Carbs
- Two
- Gasket Or Seal Included
- No
- Grade Type
- Performance

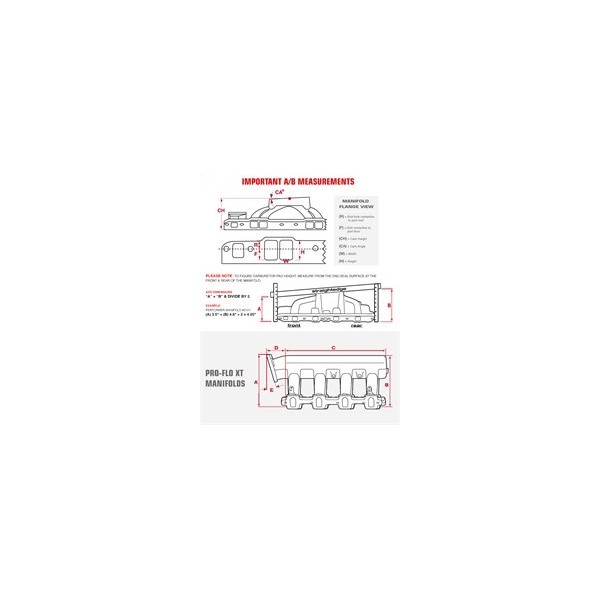

- Center Maximum Height
- 5.100 IN
- CNC Ported
- No
- Front Maximum Height
- 4.680 IN
- Rear Maximum Height
- 5.510 IN
- Single Or Dual Plane Type
- Dual Plane
Package dimensions
Width: 15.00 inch
Height: 7.00 inch
Depth: 23.90 inch
Weight: 26.25 lb
