Description
Edelbrock part PN: 7520 Air-Gap Dual-Quad-O intake manifold is designed for street 396-502 c.i.d. Chevy V8's with 1975 & earlier oval port heads. This intake stands 7/8in. taller than the low-profile C-66-O dual-quad intake and offer performance improvements in the 1500-6500 rpm range. The large runners feature our unique Air-Gap design that separates the runners from the hot engine valley for a cooler, denser charge.
Chevrolet:Big-Block:396 (6.5L)-502 (8.2L)
MANIFOLD DUAL QUAD RPM AIR GAP BBC OVAL PORT - Part number: EDL-7520 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7520 - MANIFOLD DUAL QUAD RPM AIR GAP BBC OVAL PORT engine-intake-manifold
Data sheet
- Position
- N/A
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- Without EGR
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Oval Port- Large
- RPM Range
- 1500-6000
- Number Of Carbs
- Two
- Gasket Or Seal Included
- No
- Grade Type
- Performance

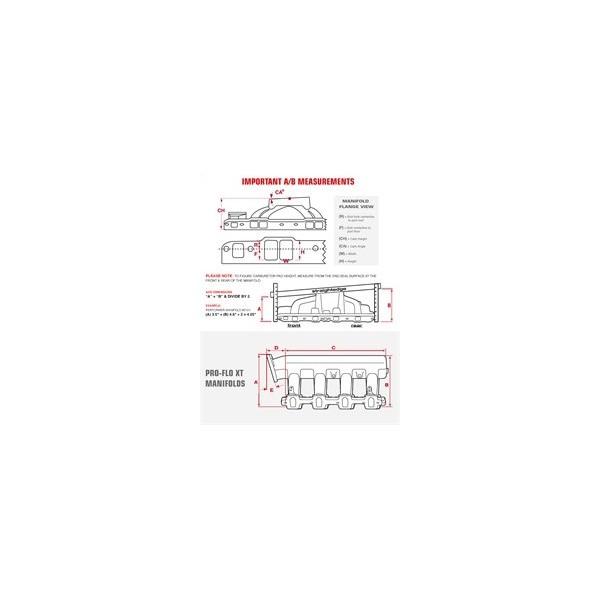

- Center Maximum Height
- 5.190 IN
- CNC Ported
- No
- Front Maximum Height
- 4.810 IN
- Rear Maximum Height
- 5.560 IN
- Single Or Dual Plane Type
- Dual Plane
Package dimensions
Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 23.85 lb
