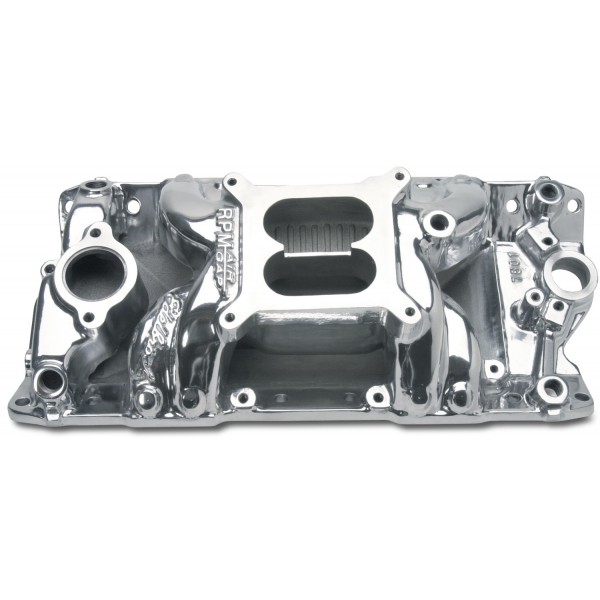

POLISHED SB CHEV RPM AIR-GAP MANIFOLD

Manufacturer: EDELBROCK
Part number: 75011
MPN: 75011
UPC: 085347750115
Availability:
£924.55
Tax included

Qty: 33, Delivery time: 8 working days

Description

Edelbrock part PN: 75011 RPM Air-Gap RPM intake manifold is designed for 1955-86 262-400 c.i.d. Chevrolet V8's. The award-winning RPM Air-Gap intake manifold incorporates the same race-winning technology that's used on our Victor Series competition intakes. The air-gap design features an open air space that separates the runners from the hot engine oil resulting in a cooler, denser charge for more power. Edelbrock's Performer RPM gives you the ultimate in street high-performance. Accepts all 1976 and later alternator and A/C brackets for the street. No provision for exhaust- heated chokes and no exhaust crossover. Not for 1987 and later cast iron heads and will not fit under stock Corvette hood. This manifold offers a polished finish for a brilliant shine and classic look.

Chevrolet:Small-Block Gen I:262 (4.3L)-400 (6.6L)

POLISHED SB CHEV RPM AIR-GAP MANIFOLD - Part number: EDL-75011 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 75011 - POLISHED SB CHEV RPM AIR-GAP MANIFOLD engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Small Block (262-400)
Emission
Without EGR
Finish
Polished
Material
Aluminum
Usage
Street/Hi-Performance
Cylinder Head Type
Standard
RPM Range
1500-6500
Number Of Carbs
One
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
4.720 IN
CNC Ported
No
Front Maximum Height
4.200 IN
Rear Maximum Height
5.250 IN
Single Or Dual Plane Type
Dual Plane

Package dimensions

Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 18.40 lb
