EFI MANIFOLD PRO FLO XT GM LS1

Manufacturer: EDELBROCK
Part number: 7139
MPN: 7139
UPC: 085347071395
Availability: Out-of-Stock
£636.95
Tax included

Call to check: 0044 (0) 1933 225 564

Description

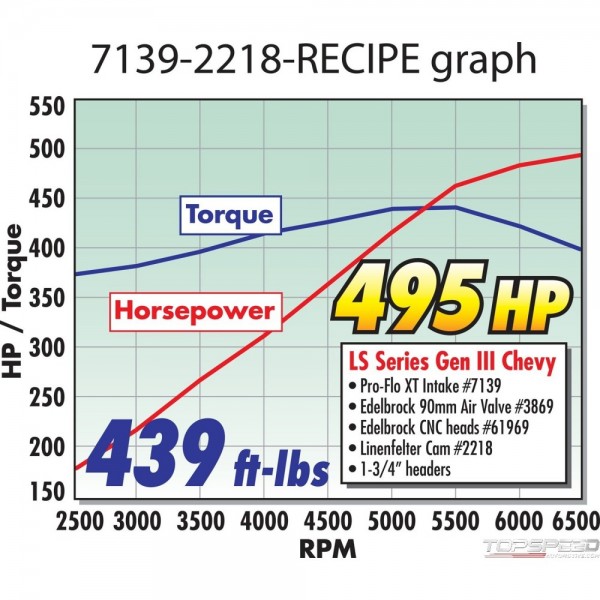

Edelbrock part PN: 7139 Pro-Flo XT LS1 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75in. port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. The Edelbrock Pro-Flo XT LS1 PN: 7139 EFI intake manifold Accepts Pro-Flo XT throttle body PN: 3869 or adapter PN: 2737 and standard LS1 throttle bodies. Compatible with LS1 Fuel Rail Kit PN: 3629 (sold separately), which features -6 AN inlet and outlet.

Chevrolet:Small-Block Gen III LM7:325 (5.3L),Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen IV LC9:325 (5.3L),Chevrolet:Small-Block Gen IV LH8:325 (5.3L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LMG:325 (5.3L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L)

EFI MANIFOLD PRO FLO XT GM LS1 - Part number: EDL-7139 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7139 - EFI MANIFOLD PRO FLO XT GM LS1 engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Small Block LS6
Emission
Without EGR
Finish
Satin
Material
Aluminum
Usage
Street/Strip
Cylinder Head Type
Standard
RPM Range
1500-7000
Number Of Carbs
None; For Fuel Injection
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
10.200 IN
CNC Ported
No
Front Maximum Height
10.200 IN
Rear Maximum Height
10.000 IN
Single Or Dual Plane Type
Single Plane

Package dimensions

Width: 15.20 inch
Height: 15.20 inch
Depth: 24.00 inch
Weight: 24.00 lb
