MANIFOLD EFI PRO FLO XT SBC VORTEC HEADS

Manufacturer: EDELBROCK
Part number: 7138
MPN: 7138
UPC: 085347071388
Availability: Last items in stock
£817.55
Tax included

Qty: 1, Delivery time: 8 working days

Description

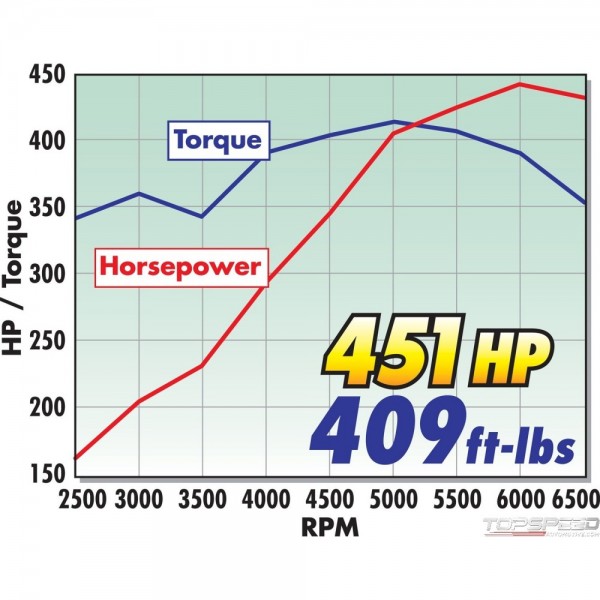

Edelbrock part PN: 7138 Pro-Flo XT intake manifold is designed for 1957-86 S/B Chevy swapped with E-Tec/Vortec heads or 1996 and later Vortec Engines. This Pro-Flo XT intake is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque throughout the rpm range (1500-7000 rpm). Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (Sold Separately).

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

MANIFOLD EFI PRO FLO XT SBC VORTEC HEADS - Part number: EDL-7138 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7138 - MANIFOLD EFI PRO FLO XT SBC VORTEC HEADS engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Small Block (262-400)
Emission
Without EGR
Finish
Satin
Material
Aluminum
Usage
Street/Hi-Performance
Cylinder Head Type
GM Vortec/Edelbrock E-TEC
RPM Range
1500-6500
Number Of Carbs
None; For Fuel Injection
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
9.200 IN
CNC Ported
No
Front Maximum Height
9.200 IN
Rear Maximum Height
8.400 IN
Single Or Dual Plane Type
Single Plane

Package dimensions

Width: 14.18 inch
Height: 6.87 inch
Depth: 22.68 inch
Weight: 22.60 lb
