MANIFOLD EFI PRO FLO XT SBC STD HEADS

Manufacturer: EDELBROCK
Part number: 7137
MPN: 7137
UPC: 085347071371
Availability:
£613.55
Tax included

Qty: 10, Delivery time: 8 working days

Description

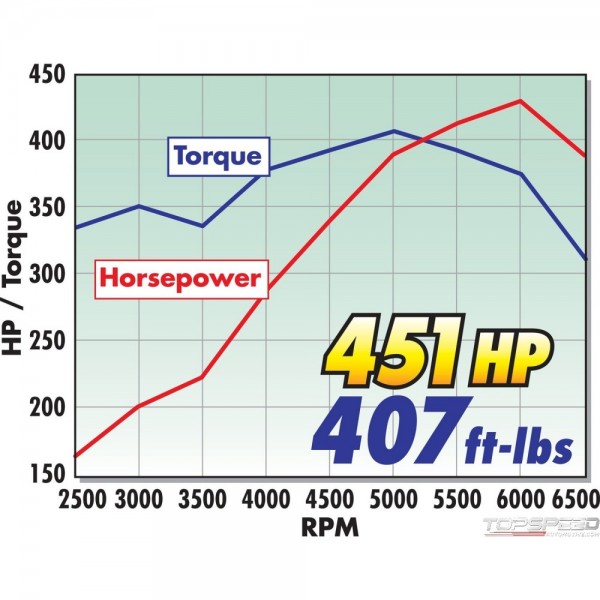

Edelbrock part PN: 7137 Pro-Flo XT intake manifold is designed for 1957-86 S/B Chevy. This manifold is engineered with a large plenum and long tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). This Pro-Flo XT EFI intake accepts Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (Sold Separately).

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

MANIFOLD EFI PRO FLO XT SBC STD HEADS - Part number: EDL-7137 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 7137 - MANIFOLD EFI PRO FLO XT SBC STD HEADS engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Small Block (262-400)
Emission
Without EGR
Finish
Satin
Material
Aluminum
Usage
Street/Hi-Performance
Cylinder Head Type
Standard
RPM Range
1500-6500
Number Of Carbs
None; For Fuel Injection
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
9.000 IN
CNC Ported
No
Front Maximum Height
9.000 IN
Rear Maximum Height
8.200 IN
Single Or Dual Plane Type
Single Plane

Package dimensions

Width: 14.18 inch
Height: 6.87 inch
Depth: 22.68 inch
Weight: 20.85 lb
