MANIFOLD EFI PRO FLO XT BBC RECT PORT HEADS
Availability:
Out-of-Stock
Description

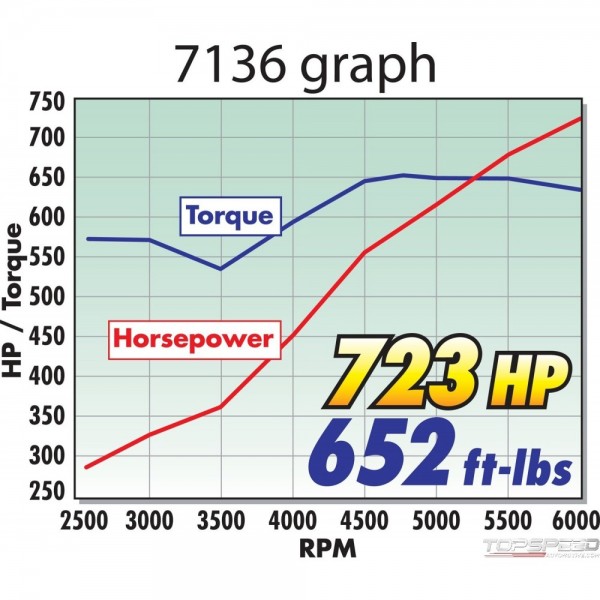

Edelbrock part PN: 7136 Pro-Flo XT EFI intake manifold is engineered for high performance 396-502 c.i.d. Chevy V8's with rectangular-port cylinder heads. A large plenum and tapered runners deliver maximum horsepower and broad torque throughout the rpm range (1500-6500 rpm). It features a 90mm throttle body opening for maximum performance. Aesthetics were also a major consideration in the design, offering enthusiasts a custom look. The Air-Gap design features an open air space that separates the runners from the hot engine oil, resulting in a cooler, denser charge for more power. Pro-Flo XT EFI intakes accept Edelbrock Pro-Flo XT Throttle Bodies and Fuel Rails (sold separately).
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
MANIFOLD EFI PRO FLO XT BBC RECT PORT HEADS - Part number: EDL-7136 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 7136 - MANIFOLD EFI PRO FLO XT BBC RECT PORT HEADS engine-intake-manifold
Data sheet
- Position
- N/A
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- Without EGR
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Rectangular Port
- RPM Range
- 1500-6500
- Number Of Carbs
- None; For Fuel Injection
- Gasket Or Seal Included
- No
- Grade Type
- Performance
- Center Maximum Height
- 10.000 IN
- CNC Ported
- No
- Front Maximum Height
- 9.800 IN
- Rear Maximum Height
- 10.000 IN
- Single Or Dual Plane Type
- Single Plane
Package dimensions
Width: 12.25 inch
Height: 14.00 inch
Depth: 24.25 inch
Weight: 25.40 lb
