MANIFOLD PERF RPM FOR GM LS1 CARBURETED

Manufacturer: EDELBROCK
Part number: 71187
MPN: 71187
UPC: 085347711871
Availability:
£532.55
Tax included

Qty: 35, Delivery time: 8 working days

Description

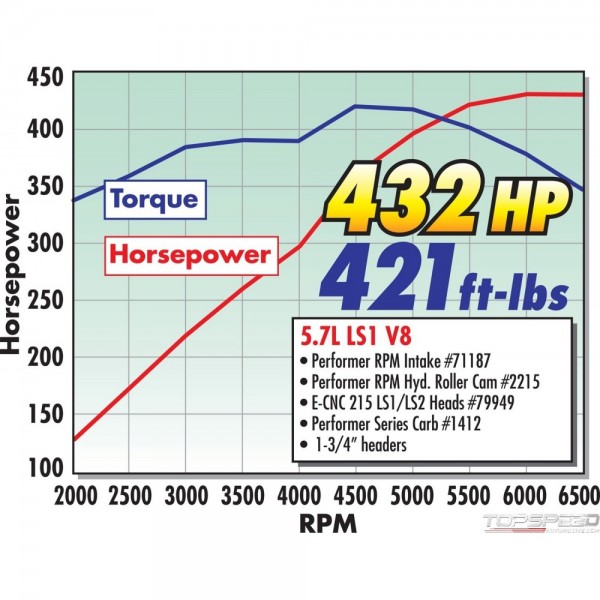

Edelbrock part PN: 71187 Performer RPM LS1 intake manifold is designed for the popular Chevrolet LS1 (5.7L) small-block V8 originally used in 1997 and later Corvettes and 1998-02 Camaros and Firebirds. It also fits the Corvette LS6 engine and any other Gen III engine including the LM7 (5.3L), LR4 (4.8L), and LQ4 (6.0L). It allows the use of a carburetor on these originally computer-controlled engines, offering maximum power and a broad torque curve from 1500 to 6500 rpm. The Performer RPM LS1 is available with an optional wiring harness and electronic Timing Control Module made by MSD this ignition module is for LS1 (24x) ignitions only and works with OE sensors to fire the Coil-on-Plug ignition system and offers a choice of six timing curves (sold separately). A special throttle and trans bracket that works with 700R-4, 200R-4 and Turbo 350 transmissions is included, making the LS1 engine an easy retro-fit into any muscle car, street rod or marine application.

Chevrolet:Small-Block Gen III LM7:325 (5.3L),Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LC9:325 (5.3L),Chevrolet:Small-Block Gen IV LH8:325 (5.3L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LMG:325 (5.3L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L)

MANIFOLD PERF RPM FOR GM LS1 CARBURETED - Part number: EDL-71187 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 71187 - MANIFOLD PERF RPM FOR GM LS1 CARBURETED engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Small Block LS1
Emission
Without EGR
Finish
Polished
Material
Aluminum
Usage
Street/Hi-Performance
Cylinder Head Type
Standard
RPM Range
1500-6500
Number Of Carbs
One
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
4.950 IN
CNC Ported
No
Front Maximum Height
4.500 IN
Rear Maximum Height
5.400 IN
Single Or Dual Plane Type
Dual Plane

Package dimensions

Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 21.00 lb
