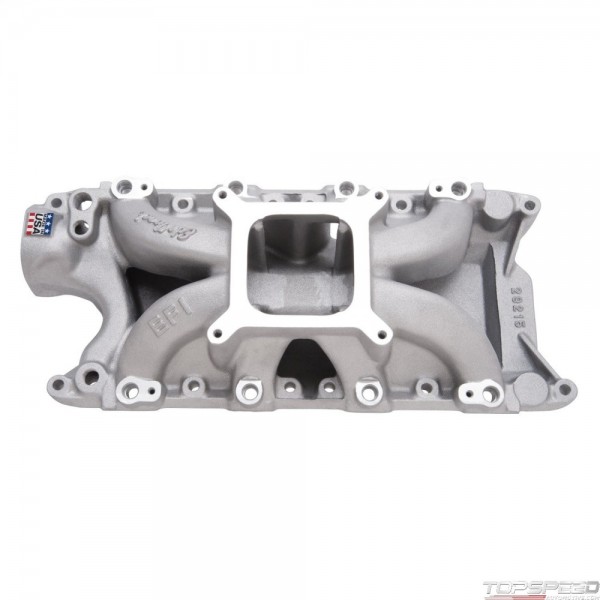

MANIFOLD SBF 289-302 VICTOR JR EFI

Manufacturer: EDELBROCK
Part number: 29215
MPN: 29215
UPC: 085347292158
Availability:
£659.56
Tax included

Qty: 18, Delivery time: 8 working days

Description

Edelbrock part PN: 29215 Victor Jr. 302 EFI intake manifold is designed for use with Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock PN: 60259 and PN: 77169 or equivalent. Victor Jr. EFI also features bosses for rear water crossover. Port exit size at cylinder head is 1.08in. x 1.90in. with extra material to accommodate a 1.18in. x 2.10in. opening. The Edelbrock Victor Jr. PN: 29215 EFI is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.

Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L)

MANIFOLD SBF 289-302 VICTOR JR EFI - Part number: EDL-29215 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 29215 - MANIFOLD SBF 289-302 VICTOR JR EFI engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Ford 260-302
Emission
Without EGR
Finish
Satin
Material
Aluminum
Usage
Racing
Cylinder Head Type
Standard
RPM Range
3500-8500
Number Of Carbs
None; For Fuel Injection
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
5.500 IN
CNC Ported
No
Front Maximum Height
5.500 IN
Rear Maximum Height
5.500 IN
Single Or Dual Plane Type
Single Plane

Package dimensions

Width: 14.75 inch
Height: 7.50 inch
Depth: 23.12 inch
Weight: 18.80 lb
