Description
Edelbrock part PN: 2921 Victor Jr. 302 intake manifold is designed for Ford 289-302 competition engines using modified stock cast iron or aftermarket Windsor-style cylinder heads such as Edelbrock PN: 60259 and PN: 77169 or equivalent. This intake manifold has bosses for rear water crossover. Port exit size at cylinder head is 1.08in. x 1.90in. with extra material to accommodate a 1.18in. x 2.10in. opening. This Victor Jr. is a single-plane, high-rise intake designed for maximum race-winning power at higher engine speeds.
Ford:Small-Block Windsor:260 (4.3L)/289 (4.7L)/302 (5.0L)
VICTOR JR 302 FORD - Part number: EDL-2921 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 2921 - VICTOR JR 302 FORD engine-intake-manifold
Data sheet
- Position
- N/A
- Engine Make/Size
- Ford 260-302
- Emission
- Without EGR
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- RPM Range
- 3500-8000
- Number Of Carbs
- One
- Gasket Or Seal Included
- No
- Grade Type
- Performance

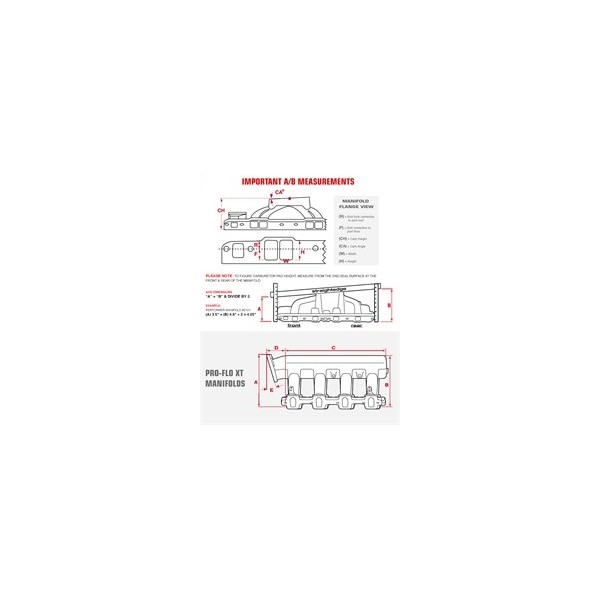

- Center Maximum Height
- 5.500 IN
- CNC Ported
- No
- Front Maximum Height
- 5.500 IN
- Rear Maximum Height
- 5.500 IN
- Single Or Dual Plane Type
- Single Plane
Package dimensions
Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 18.80 lb
