Description
Edelbrock part PN: 29021 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads PN: 77609 and Victor 24-degree PN: 77409, PN: 77459, PN: 77429, PN: 77479 and PN: 77485. This manifold offers a polished finish for a brilliant shine and classic look.
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
POLISHED (NR) VICTOR 454-R 850 - Part number: EDL-29021 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 29021 - POLISHED (NR) VICTOR 454-R 850 engine-intake-manifold
Data sheet
- Position
- N/A
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- N/A
- Finish
- Polished
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Rectangular Port
- RPM Range
- 3500-7500
- Number Of Carbs
- One
- Gasket Or Seal Included
- No
- Grade Type
- Performance

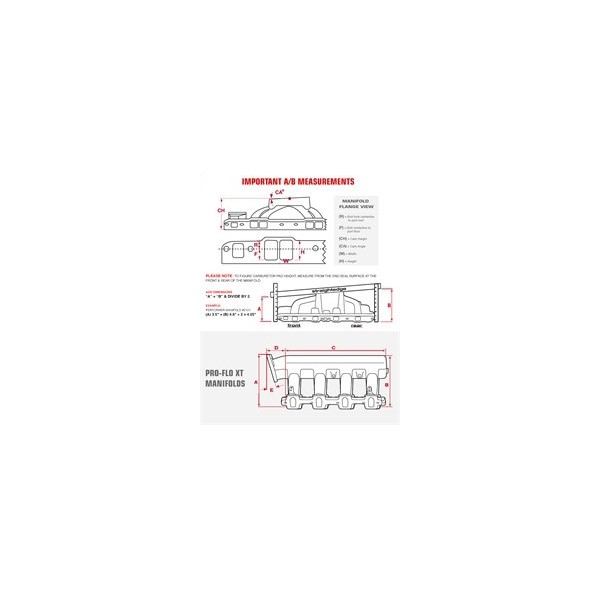

- Center Maximum Height
- 5.960 IN
- CNC Ported
- No
- Front Maximum Height
- 5.960 IN
- Rear Maximum Height
- 5.960 IN
- Single Or Dual Plane Type
- Single Plane
Package dimensions
Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 21.45 lb
