MANIFOLD VICTOR JR. BBC RECT PORT

Manufacturer: EDELBROCK
Part number: 2902
MPN: 2902
UPC: 085347029020
Availability: Last items in stock
£489.95
Tax included

Qty: 2, Delivery time: 2 working days

Description

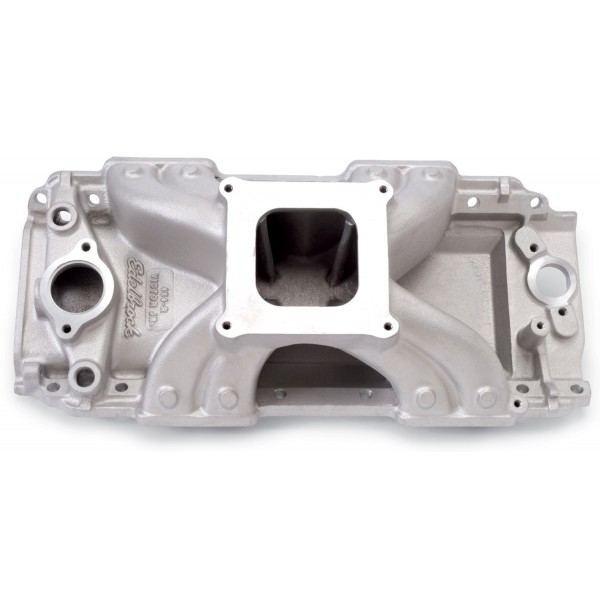

Edelbrock part PN: 2902 Victor Jr. 454-R intake manifold is designed for competition 396-502 big-block Chevys with rectangular-port heads. This intake is designed to optimize the flow characteristics of an 850 cfm standard flange carb. Features include extended runner dividers, smaller plenum chambers and unique runner design for better 60 foot times and max power from 3500 to 7500 rpm. This manifold is especially suited to 502 c.i.d. and smaller competition engines. The Victor Jr. 454-R will fit Edelbrock Victor race heads PN: 77609 and Victor 24-degree PN: 77409, PN: 77459, PN: 77429, PN: 77479 and PN: 77485.

Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)

MANIFOLD VICTOR JR. BBC RECT PORT - Part number: EDL-2902 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 2902 - MANIFOLD VICTOR JR. BBC RECT PORT engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Big Block (396-502)
Emission
N/A
Finish
Satin
Material
Aluminum
Usage
Racing
Cylinder Head Type
Rectangular Port
RPM Range
3500-7500
Number Of Carbs
One
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
5.960 IN
CNC Ported
No
Front Maximum Height
5.960 IN
Rear Maximum Height
5.960 IN
Single Or Dual Plane Type
Single Plane

Package dimensions

Width: 14.75 inch
Height: 7.50 inch
Depth: 23.62 inch
Weight: 22.55 lb
