INTAKE MANIFOLD PERF EPS SBC W/OIL FILL TUBE/BREATHER

Manufacturer: EDELBROCK
Part number: 2703
MPN: 2703
UPC: 085347027033
Availability:
£447.55
Tax included

Qty: 36, Delivery time: 8 working days

Description

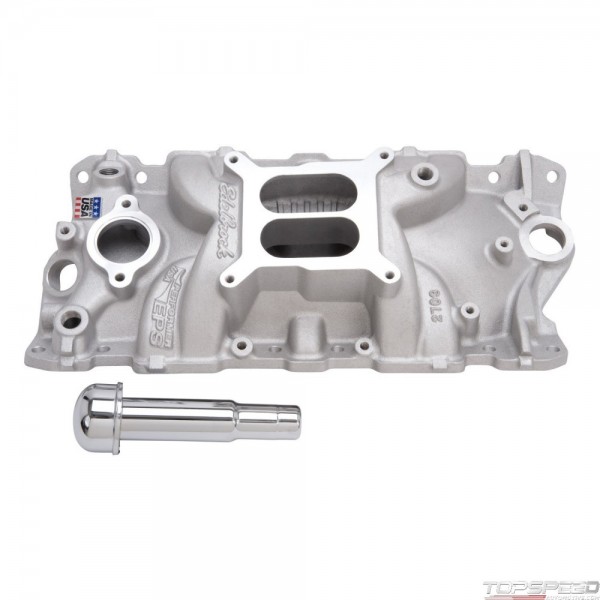

Edelbrock part PN: 2703 Performer EPS intake manifold is designed for 1986 and earlier 262-400 cubic-inch Chevys. Edelbrock's Patented Dual-plane, low-rise design with a 180-degree firing order greatly improves torque over a wide rpm range for excellent throttle response. This intake manifold combines a modern runner design with a front mounted oil fill tube for those who want the vintage look of our Classic valve covers with no breathers. This small-block Chevy manifold has a runner design that's 'tuned' for peak torque at 3500 rpm on a 350-inch engine and it's ideal for power from off-idle to 5500 rpm. Dyno tests showed gains of 5 hp and 9 ft-lbs. of torque over the Edelbrock Performer intake manifold PN: 2101 on a 350 Chevy. From 3000 to 4500 rpm, the increases averaged 5+ ft-lbs. of torque for more performance where you need it most. In addition, the Edelbrock Performer EPS PN: 2703 dual-plane intake manifold is optimized to deliver superior performance with Edelbrock square-bore Performer Series or Thunder Series AVS carburetors. Includes Oil Fill Tube (not installed) and matching push-in breather cap.

Chevrolet:Small-Block Gen I:265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

INTAKE MANIFOLD PERF EPS SBC W/OIL FILL TUBE/BREATHER - Part number: EDL-2703 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 2703 - INTAKE MANIFOLD PERF EPS SBC W/OIL FILL TUBE/BREATHER engine-intake-manifold

Data sheet

Position
N/A
Engine Make/Size
Chevy Small Block (262-400)
Emission
Without EGR
Finish
Satin
Material
Aluminum
Usage
Street/Hi-Performance
Cylinder Head Type
Standard
RPM Range
Idle -5500
Number Of Carbs
One
Gasket Or Seal Included
No
Grade Type
Performance
Center Maximum Height
4.270 IN
CNC Ported
No
Front Maximum Height
3.740 IN
Rear Maximum Height
4.800 IN
Single Or Dual Plane Type
Dual Plane

Package dimensions

Width: 10.50 inch
Height: 4.60 inch
Depth: 22.50 inch
Weight: 17.60 lb
