Description

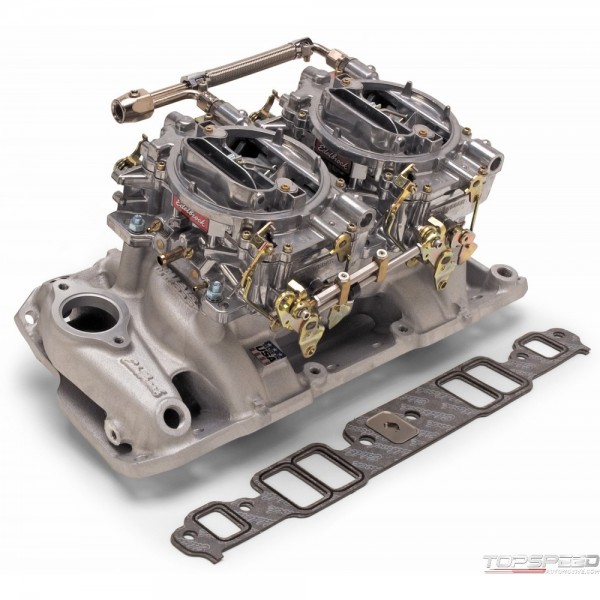

The Edelbrock PN: 2069 RPM Dual-Quad manifold and carb kit is designed for 348/409 'W-Series' Chevy, small port applications. A huge hit among street rodders, this Dual-Quad Kits offer the ultimate set-up for anyone who wants the look and the performance of dual-quad carbs. The Edelbrock PN: 2069 includes an Edelbrock RPM or RPM Air-Gap Dual-Quad intake manifold and two 500 cfm Thunder Series AVS carburetors calibrated specifically for dual-quad applications (one manual choke, one electric choke). To make the installation simple, these kits also include our high-tech progressive throttle linkage, Russell fuel inlet, high-quality Edelbrock intake gaskets, intake bolt set and carburetor stud kit. The manifold and Thunder Series carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks.
Chevrolet:W-Series:348 (5.7L)/409 (6.7L)
DUAL QUAD KIT PERF RPM CHEVY 409 W LG PORT - Part number: EDL-2069 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 2069 - DUAL QUAD KIT PERF RPM CHEVY 409 W LG PORT engine-intake-manifold-carburetor-kit
Data sheet
- Engine Make/Size
- Chevy 348-409
- Carburetor Type
- (2) AVS2 Series 500 cfm
- Finish
- Satin
- Cylinder Head Type
- Oval Port- Large
- Family
- Performer RPM
- Series
- Performer RPM
- Single Or Dual Plane Type
- Dual
- Base Plate Gasket Mount Hole Quantity
- 8
- Base Plate Gasket Thickness
- 0.048 IN
- Base Plate Material
- Aluminum
- Intake Manifold Type
- Performer RPM
Package dimensions
Width: 14.29 inch
Height: 15.50 inch
Depth: 26.25 inch
Weight: 48.00 lb
