Description

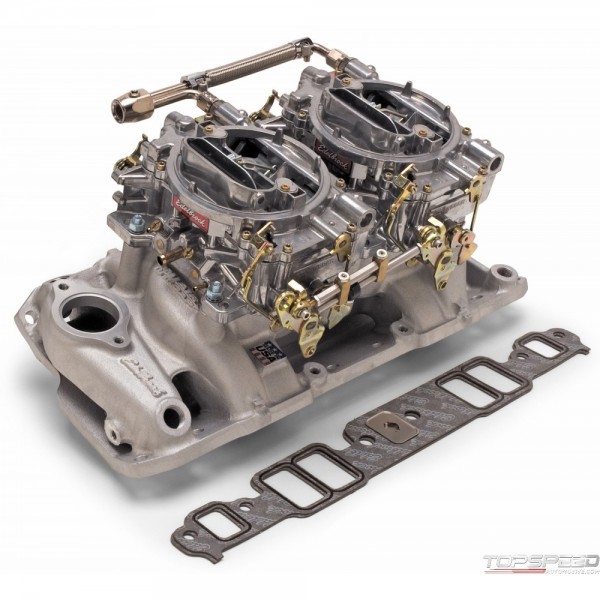

The Edelbrock PN: 2025 RPM Dual-Quad manifold and carb kit is designed for 1957-86 Small-Block Chevy applications. A huge hit among street rodders, this Dual-Quad Kits offer the ultimate set-up for anyone who wants the look and the performance of dual-quad carbs. The Edelbrock PN: 2025 includes an Edelbrock RPM or RPM Air-Gap Dual-Quad intake manifold and two 500 cfm Thunder Series AVS carburetors calibrated specifically for dual-quad applications (one manual choke, one electric choke). To make the installation simple, these kits also include our high-tech progressive throttle linkage, Russell fuel inlet, high-quality Edelbrock intake gaskets, intake bolt set and carburetor stud kit. The manifold and Thunder Series carbs are available with a standard satin finish or with our bright EnduraShine chrome-like finish for long lasting show quality looks.
Chevrolet:Small-Block Gen I:262 (4.3L)/265 (4.3L)/267 (4.4L)/283 (4.6L)/302 (4.9L)/305 (5.0L)/307 (5.0L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
7525/1803/1804 MANI/CARB KIT. PERF RPM DUAL QUAD AIR GAP/THNDR AVS. 55-86 SBC 26 - Part number: EDL-2025 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 2025 - 7525/1803/1804 MANI/CARB KIT. PERF RPM DUAL QUAD AIR GAP/THNDR AVS. 55-86 SBC 26 engine-intake-manifold-carburetor-kit
Data sheet
- Engine Make/Size
- Chevy Small Block (262-400)
- Carburetor Type
- (2) AVS2 Series 500 cfm
- Finish
- Satin
- Cylinder Head Type
- Standard
- Family
- RPM Air-Gap
- Series
- RPM Air-Gap
- Single Or Dual Plane Type
- Dual
- Base Plate Gasket Mount Hole Quantity
- 8
- Base Plate Gasket Thickness
- 0.048 IN
- Base Plate Material
- Aluminum
- Intake Manifold Type
- RPM Air-Gap
Package dimensions
Width: 13.75 inch
Height: 13.87 inch
Depth: 25.50 inch
Weight: 44.00 lb
