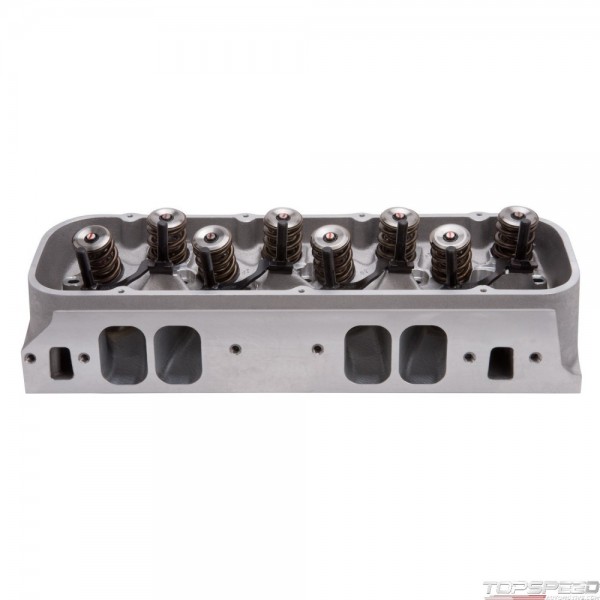

RACE HEAD, MUSI CNC BBCHEV VICTOR 24DEG, COMPLETE
Availability:
Out-of-Stock
Description
Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock PN: 61409 Victor 24deg CNC cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880in. lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flowout-of-the-box. The exhaust port exits are raised .750in. to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.
Chevrolet:Big-Block Race
Chevrolet:Big-Block Race
RACE HEAD, MUSI CNC BBCHEV VICTOR 24DEG, COMPLETE - Part number: EDL-61409 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61409 - RACE HEAD, MUSI CNC BBCHEV VICTOR 24DEG, COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Competition
- Flange Type
- Rectangle Intake
- Cylinder Head Type
- Rectangular Port
- Grade Type
- Performance
- Preparation
- Factory CNC Ported
- Camshaft Type
- Mechanical Roller
- Family
- Edelbrock/Musi
- Series
- Edelbrock/Musi
- CNC Ported
- Yes
- Combustion Chamber Volume
- 119 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.5625 IN
- EGR Port
- Yes
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 600-900 HJ
- Exhaust Port Location
- +0.500
- Exhaust Runner Volume
- 128 CCM
- Exhaust Valve Diameter
- 1.90 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 377 CCM
- Intake Valve Diameter
- 2.30 IN
- Push Rod Diameter
- (Suggested) 0.375 IN
- Rocker Stud Diameter
- 0.4375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 24 DD
- Valve Spring Diameter
- 1.635 IN
- Valve Spring Maximum Lift
- 0.880 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 10.44 inch
Height: 8.25 inch
Depth: 24.75 inch
Weight: 46.05 lb
