BUICK 400,430,455CID PERF RPM HEAD-COMPLETE
Availability:
Out-of-Stock
Description

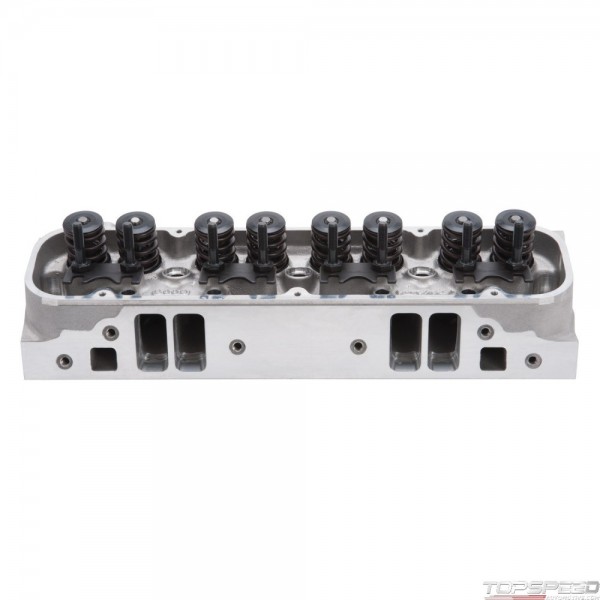

The Edelbrock PN: 60049 Performer RPM Super Stock cylinder head is designed for 400, 430 and 455 c.i.d. Buick engines. This cylinder head includes adjustable rocker stud and guide plate set-up for use with small-block Chevy style adjustable 1.6:1 ratio rockers. The large 68cc combustion chambers produce 9.2:1 compression ratio with stock pistons. Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Buick:Big-Block:400 (6.6L)/430 (7.0L)/455 (7.5L)
Buick:Big-Block:400 (6.6L)/430 (7.0L)/455 (7.5L)
BUICK 400,430,455CID PERF RPM HEAD-COMPLETE - Part number: EDL-60049 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60049 - BUICK 400,430,455CID PERF RPM HEAD-COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Buick 400-455
- Emission
- 50 State Legal
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Flat Tappet
- Family
- Performer
- Series
- Performer
- CNC Ported
- No
- Combustion Chamber Volume
- 68 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 400-500 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 130 CCM
- Exhaust Valve Diameter
- 1.75 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 215 CCM
- Intake Valve Diameter
- 2.125 IN
- Push Rod Diameter
- (Suggested) 0.375 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 15 DD
- Valve Spring Diameter
- 1.55 IN
- Valve Spring Maximum Lift
- 0.600 IN
- Valve Stem Diameter
- 0.34375 IN
Package dimensions
Width: 11.00 inch
Height: 9.00 inch
Depth: 26.00 inch
Weight: 35.85 lb
