CYL HEAD GM GEN III LS SERIES E-CNC 215 BARE
Availability:
Out-of-Stock
Description

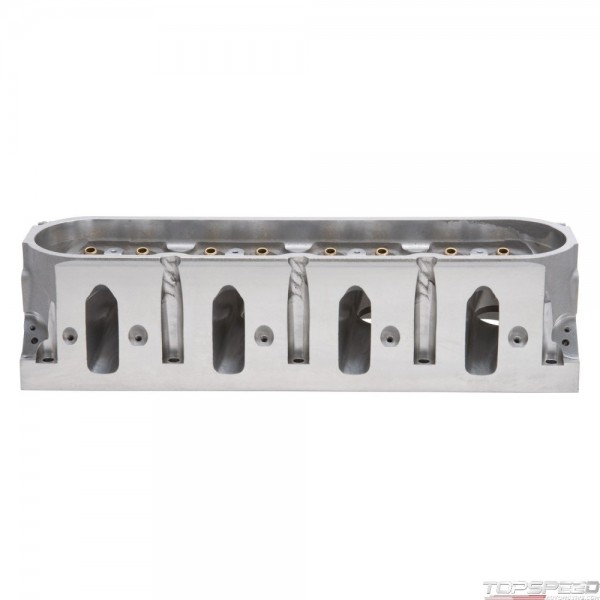

The Edelbrock 79939 Bare E-CNC Small Block Chevy GEN 3 & 4 LS cylinder heads were designed for 1997 & later GEN 3 & 4 LS1/LS2 Chevy engines including 4.8L, 5.3L, 5.7L & 6.0L. All E-CNC?Cylinder Heads?feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow. Dyno tests proved these?heads?are capable of 457 hp & 438 ft-lbs. of torque. High-quality conical beehive springs are secured with steel retainers and valve locks for performance up to .600in. valve lift. Match with any one of Edelbrock's LS series intake manifolds and camshafts for a dyno-proven performance combination. Rocker bolt kit PN: 8597 includes 8 rocker bolts that are shorter than stock to prevent the bolts from protruding into the intake ports. E-CNC 215 head is 50-state street legal.
Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LS2:364 (6.0L)
Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LS2:364 (6.0L)
CYL HEAD GM GEN III LS SERIES E-CNC 215 BARE - Part number: EDL-79939 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 79939 - CYL HEAD GM GEN III LS SERIES E-CNC 215 BARE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Small Block LS1
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Competition
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- CNC Ported
- Yes
- Combustion Chamber Volume
- 65.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- No
- Head Casting Number
- 31-6196
- Intake Runner Volume
- 215.0 CCM
- Valve Angle
- 15 DD
- Deck Height
- 9.240 IN
Package dimensions
Width: 10.44 inch
Height: 8.19 inch
Depth: 24.75 inch
Weight: 28.65 lb
