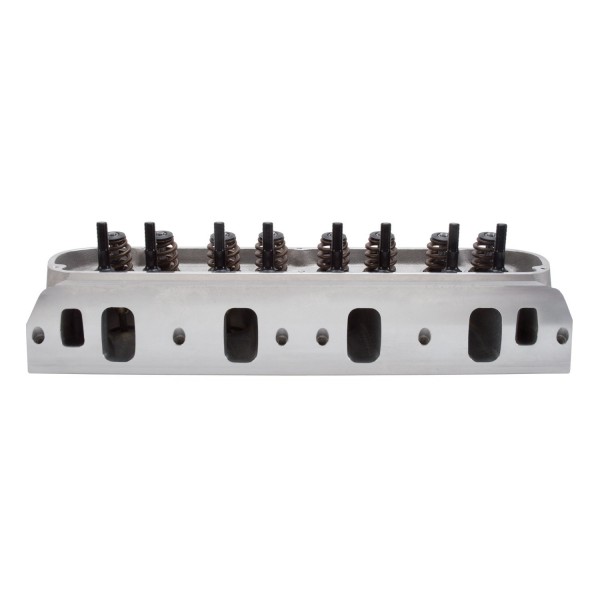

CYL HEAD E-CNC 185 SBF COMPLETE
Availability:
Out-of-Stock
Description
The Edelbrock part PN: 79259 Small Block Ford E-CNC 185 cylinder head is the ultimate in performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and light duty racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift and maintain the stock exhaust port location., E-CNC 185 FORD FEATURES:,CNC ported to achieve optimal air-flow for maximum horsepower and torque in high Performance's street and light duty racing applications,The casting and port designs are all new and engineered for great performance,Fully CNC'd intake ports, combustion chambers and exhaust ports for improved air-flow,Head feature 2.02in. intake and 1.57in. exhaust, 8mm stem valves and are equipped with conical valve springs and steel retainers for a lightweight and durable valve train combo,Aggressive 18deg valve angle for maximum performance and accepts common intake manifolds such as Edelbrock Performer RPM and RPM II,Equipped with valve springs for use in hydraulic roller applications,Combustion chamber size of 59cc,Maximum lift: flat tappet, .600in., roller lifter springs, .670in.
Ford:Small-Block:289 (4.7L)-351W (5.8L)
Ford:Small-Block:289 (4.7L)-351W (5.8L)
CYL HEAD E-CNC 185 SBF COMPLETE - Part number: EDL-79259 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 79259 - CYL HEAD E-CNC 185 SBF COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford Small Block
- Emission
- Non-Emissions
- Finish
- Cast Steel
- Material
- Aluminum
- Usage
- Competition
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- E-CNC
- Series
- E-CNC
- CNC Ported
- Yes
- Combustion Chamber Volume
- 59 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 350-500 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 75 CCM
- Exhaust Valve Diameter
- 1.57 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 185 CCM
- Intake Valve Diameter
- 2.02 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.4375 IN
- Seat Material
- Ductile Iron
- Valve Angle
- 18 DD
- Valve Spring Diameter
- 1.30 IN
- Valve Spring Maximum Lift
- 0.600 IN
- Valve Stem Diameter
- 0.314961 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 32.15 lb
