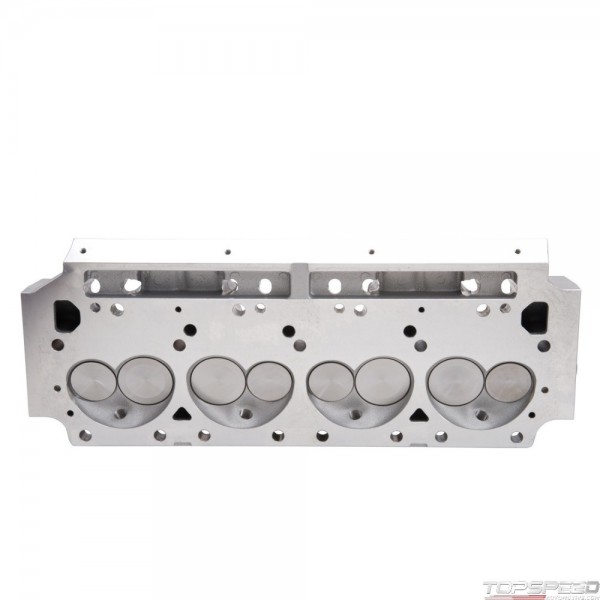

CYL HEAD CHRYSLER VICTOR MAX WEDGE FOR B/RB BIG CHRYSLER ENGINES SINGLE BARE CAS
Availability:
Out-of-Stock
Description
The Edelbrock part PN: 77949 Big Block Chrysler Max Wedge Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition., VICTOR B/B CHRYSLER MAX WEDGE FEATURES:,The best standard port location cylinder head available for competition big-block Chryslers,Intake ports are raised .650in., exhaust ports are raised .250in. for improved flow,The intake flange is extended .950in. to eliminate the need for intake spacer plates,Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines,Sold without springs or retainers, use recommended springs to match your camshaft,Exhaust flange is extended .300in. from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts,Max Wedge intake ports are machined to match intake manifolds for B and RB competition big-block Chryslers,72cc combustion chamber volume,Cylinder head part PN: 77949 comes bare with valves only
Chrysler:Big-Block B-Series:383 (6.3L)/400 (6.6L),Chrysler:Big-Block RB-Series:413 (6.8L)/426 (7.0L)/440 (7.2L)
CYL HEAD CHRYSLER VICTOR MAX WEDGE FOR B/RB BIG CHRYSLER ENGINES SINGLE BARE CAS - Part number: EDL-77949 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77949 - CYL HEAD CHRYSLER VICTOR MAX WEDGE FOR B/RB BIG CHRYSLER ENGINES SINGLE BARE CAS engine-cylinder-head
Data sheet
- Type
- Valves Only
- Engine Make/Size
- Mopar 383-440
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor
- Series
- Victor
- CNC Ported
- No
- Combustion Chamber Volume
- 72 CCM
- Construction Type
- Bare With Valves
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- Yes
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Port Location
- +.250
- Exhaust Runner Volume
- 100 CCM
- Exhaust Valve Diameter
- 1.81 IN
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 290 CCM
- Intake Valve Diameter
- 2.20 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 15 DD
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 11.00 inch
Height: 8.50 inch
Depth: 26.25 inch
Weight: 38.00 lb
