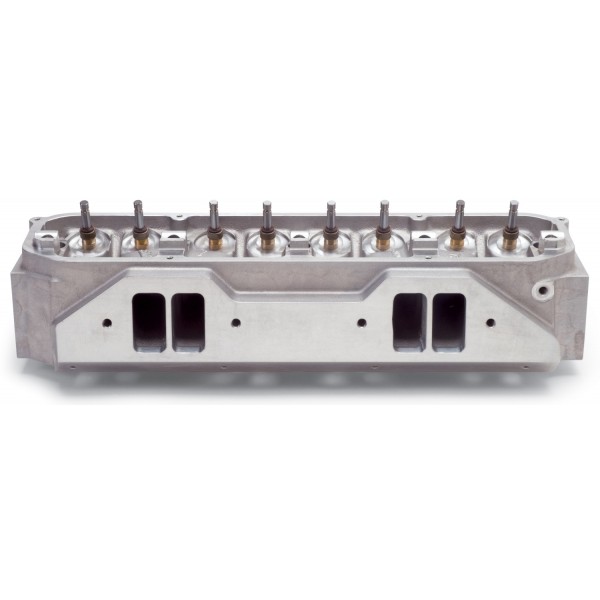

Victor RB/B Big-Block Chrysler Cylinder Head W/Valves
Availability:
Out-of-Stock
Description
The Edelbrock part PN: 77929 Big Block Chrysler Victor Series cylinder head is used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is a competition ready cylinder head that features a cylinder head which is compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder head features raised runners, revised chambers and relocated valves for all-out competition., VICTOR B/B CHRYSLER FEATURES:,The best standard port location cylinder head available for competition big-block Chryslers,Intake ports are raised .650in., exhaust ports are raised .250in. for improved flow,The intake flange is extended .950in. to eliminate the need for intake spacer plates,Cylinder head will fit Edelbrock Victor manifolds for both high and low deck engines,Sold without springs or retainers, use recommended springs to match your camshaft,Exhaust flange is extended .300in. from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts,72cc combustion chamber volume,Cylinder head part PN: 77939 comes bare with valves only
Victor RB/B Big-Block Chrysler Cylinder Head W/Valves - Part number: EDL-77929 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77929 - Victor RB/B Big-Block Chrysler Cylinder Head W/Valves engine-cylinder-head
Data sheet
- Type
- Valves Only
- Engine Make/Size
- Mopar 383-440
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Family
- Victor
- Series
- Victor
- CNC Ported
- No
- Combustion Chamber Volume
- 72 CCM
- Construction Type
- Bare With Valves
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- Yes
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Port Location
- +.250
- Exhaust Runner Volume
- 100 CCM
- Exhaust Valve Diameter
- 1.81 IN
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 280 CCM
- Intake Valve Diameter
- 2.20 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 15 DD
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 11.00 inch
Height: 8.50 inch
Depth: 26.00 inch
Weight: 37.80 lb
