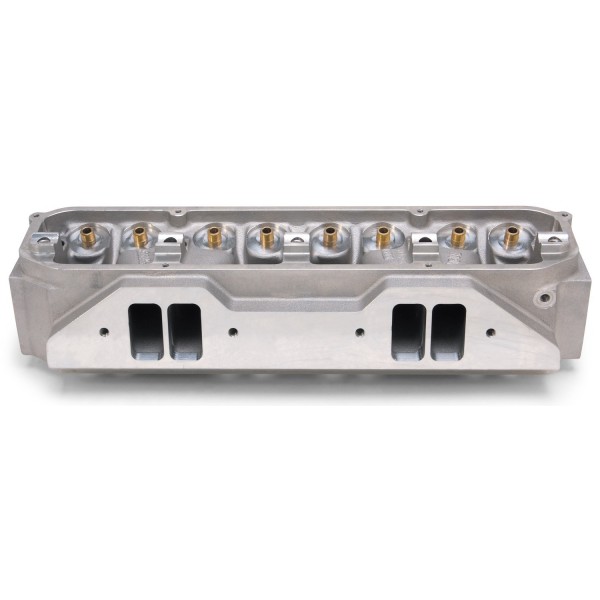

Victor RB/B Big-Block Chrysler Cylinder Head Bare
Availability:
Out-of-Stock
Description
The Edelbrock part PN: 77919 Big Block Chrysler Victor Series cylinder heads are used by many of the best racers in the country and are the best choice for all-out competition. Edelbrock engineers work with leading racers like Billy Glidden, John Urist and Pat Musi to produce the ultimate components for racing. The end results is competition ready cylinder heads that feature cylinder heads are compatible with OE valve train and pistons for bolt-on convenience while Victor cylinder heads feature raised runners, revised chambers and relocated valves for all-out competition., VICTOR B/B CHRYSLER FEATURES:,The best standard port location cylinder head available for competition big-block Chryslers,Intake ports are raised .650in., exhaust ports are raised .250in. for improved flow,The intake flange is extended .950in. to eliminate the need for intake spacer plates,Cylinder heads will fit Edelbrock Victor manifolds for both high and low deck engines,Sold without springs or retainers, use recommended springs to match your camshaft,Exhaust flange is extended .300in. from stock (same as Mopar Stage 6) featuring dry exhaust bolt holes with Heli-Coil thread inserts,72cc combustion chamber volume,Cylinder head part PN: 77939 comes bare with valves only
Victor RB/B Big-Block Chrysler Cylinder Head Bare - Part number: EDL-77919 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77919 - Victor RB/B Big-Block Chrysler Cylinder Head Bare engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Mopar 383-440
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- CNC Ported
- No
- Combustion Chamber Volume
- 72.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- No
- Head Casting Number
- 31-7791
- Exhaust Valve Diameter
- 1.81 IN
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 280.0 CCM
- Intake Valve Diameter
- 2.20 IN
- Push Rod Diameter
- 0.375 IN
- Valve Angle
- 15 DD
- Deck Height
- 9.98 IN
Package dimensions
Width: 10.43 inch
Height: 8.18 inch
Depth: 24.75 inch
Weight: 35.70 lb
