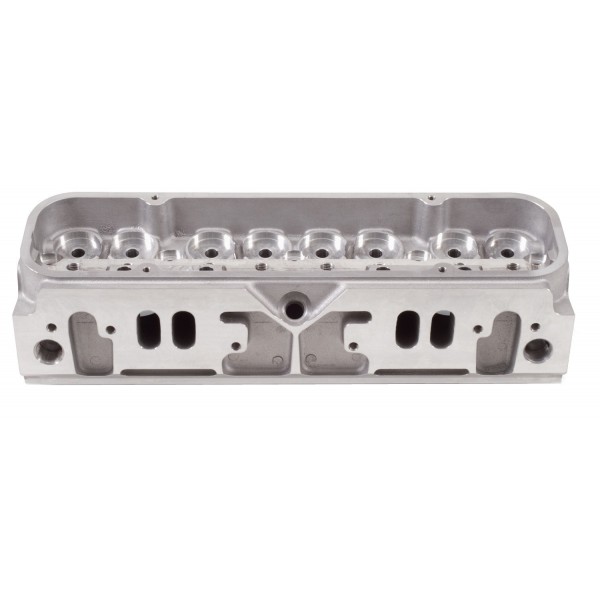

XX CYL HEAD PRO PORT VICTOR PONTIAC 12.6 DEG VALVE
Availability:
Out-of-Stock
Description
Ultimate choice for extreme Pontiac race applications. Raised intake port opening and extended flanges. Improves flow while retaining stock position. Center water outer for improved cooling. Improves valve train stability. Raised valve cover rails and spring pads.
Pontiac:Race
Pontiac:Race
XX CYL HEAD PRO PORT VICTOR PONTIAC 12.6 DEG VALVE - Part number: EDL-77819 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77819 - XX CYL HEAD PRO PORT VICTOR PONTIAC 12.6 DEG VALVE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Pontiac 326-455
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor
- Series
- Pro-Port
- CNC Ported
- No
- Construction Type
- Pro-Port Raw
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Guide Material
- Manganese Bronze
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 12.6 DD
Package dimensions
Width: 11.00 inch
Height: 8.50 inch
Depth: 26.00 inch
Weight: 28.00 lb
