XX Victor Jr Small-Block Chevy 70cc Hydraulic Roller Camshaft
Availability:
Out-of-Stock
Description

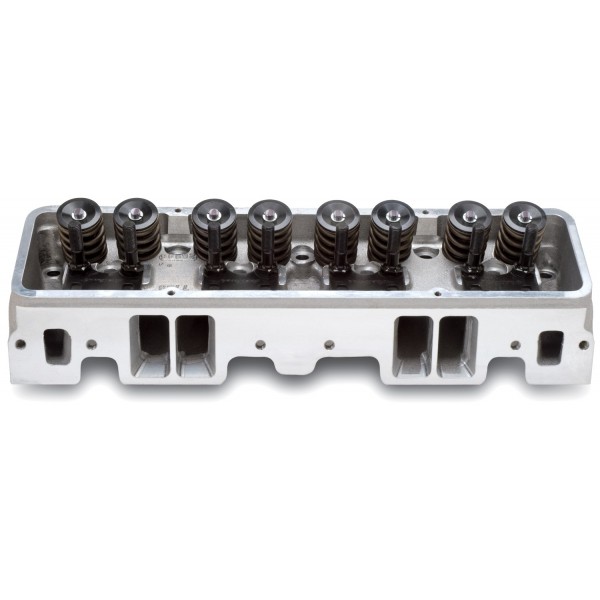

The Edelbrock part PN: 77619 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder heads feature angled spark plug holes and accept standard 23 Deg valvetrain hardware. The 77619 cylinder heads have a 70cc combustion chamber and come with springs for hydraulic roller camshafts.
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
XX Victor Jr Small-Block Chevy 70cc Hydraulic Roller Camshaft - Part number: EDL-77619 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77619 - XX Victor Jr Small-Block Chevy 70cc Hydraulic Roller Camshaft engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Small Block (262-400)
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Competition
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- CNC Ported
- No
- Combustion Chamber Volume
- 70.0 CCM
- Deck Thickness
- 0.562 IN
- Guide Plates Included
- Yes
- Head Casting Number
- 31-7763
- Exhaust Valve Diameter
- 1.600 IN
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 215.0 CCM
- Intake Valve Diameter
- 2.080 IN
- Push Rod Diameter
- 0.312 IN
- Rocker Stud Diameter
- 0.437 IN
- Valve Angle
- 23 DD
- Valve Spring Diameter
- 1.550 IN
- Valve Spring Maximum Lift
- 0.650 IN
- Valve Stem Diameter
- 0.341 IN
- Deck Height
- 9.025 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 33.55 lb
