23 DEG VICTOR JR SBC 64CC W/VALVES ONLY
Availability:
Out-of-Stock
Description

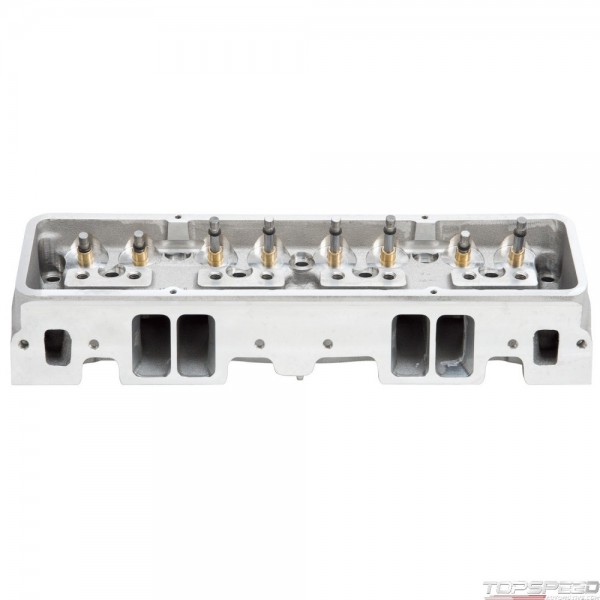

The Edelbrock part PN: 77579 Small Block Chevy Victor Jr. 215cc cylinder head is an affordable version that will still allow for maximum power when used in competition and ultra high-performance's street applications. This cylinder head has the potential of 530-580 hp out-of-the-box, for a cost effective, race-winning set-up. These cylinder head features angled spark plug holes and accept standard 23deg valvetrain hardware. The 77579 cylinder head has a 64cc combustion chamber and come with valves only so you can add your own springs. The 64cc chambers yield about 12.5:1 compression with a 12cc domed piston in a 350 V8.
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
23 DEG VICTOR JR SBC 64CC W/VALVES ONLY - Part number: EDL-77579 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77579 - 23 DEG VICTOR JR SBC 64CC W/VALVES ONLY engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Small Block (262-400)
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Competition
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Family
- Victor Jr.
- Series
- Victor Jr.
- CNC Ported
- No
- Combustion Chamber Volume
- 62-64 CCM
- Construction Type
- Semi-Complete
- Deck Thickness
- 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- Yes
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Horsepower
- 450-550 HJ
- Exhaust Port Location
- +.125
- Exhaust Runner Volume
- 85 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 215 CCM
- Intake Valve Diameter
- 2.08 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.4375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 23 DD
- Valve Stem Diameter
- 0.3438 IN
- Rotor Center Bore Inside Diameter
- Angled
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 27.55 lb
