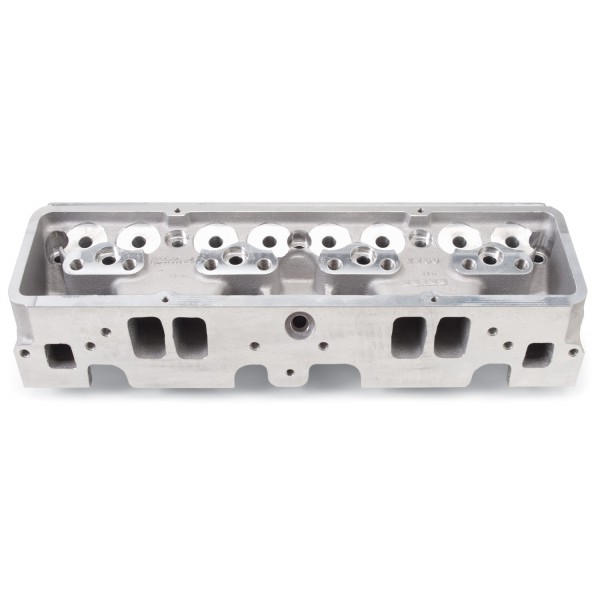

XX 77529 LESS SEATS/GUIDES-VICTOR SBC 18 DEG
Availability:
Out-of-Stock
Description
For professional cylinder head porter. 36cc chamber size. No seats or guides included. As-cast casting has small ports and chambers. Max valve size is 2.24 interior and 1.65 exterior. 18 degree valve angle. Enough wall thickness for CNC machining. Seats 0.100 inch closer to deck. Approved for NASCAR touring classes.
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
XX 77529 LESS SEATS/GUIDES-VICTOR SBC 18 DEG - Part number: EDL-77539 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77539 - XX 77529 LESS SEATS/GUIDES-VICTOR SBC 18 DEG engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Small Block (262-400)
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor
- Series
- Pro-Port
- CNC Ported
- No
- Construction Type
- Pro-Port Raw
- Deck Thickness
- .700 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Valve Diameter
- (Suggested) Maximum 1.625 IN
- Intake Valve Diameter
- (Suggested) Maximum 2.180 IN
- Valve Angle
- 18 DD
- Valve Spacing
- 1.935 IN
- Bore Spacing
- 4 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 29.95 lb
