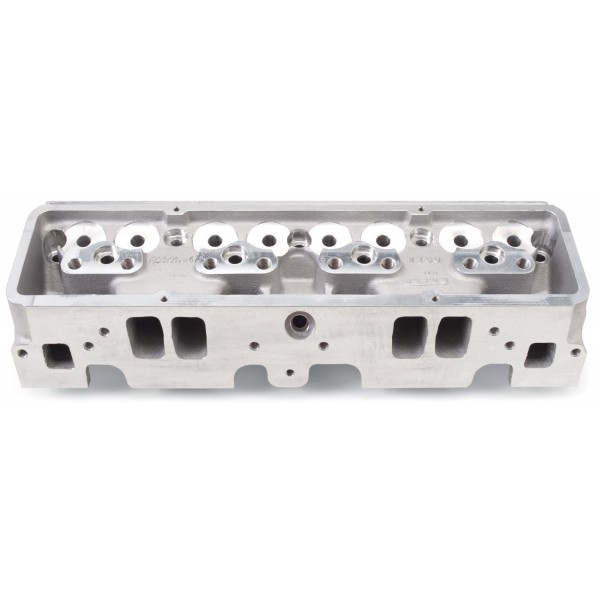

XX VICTOR SBC 18 DEG BARE-9:1 COMPRESSION
Availability:
Out-of-Stock
Description
For professional cylinder head porter. Available 65 and 42 cc chamber sizes. As-cast casting has small ports and chambers. Max valve size is 2.24 interior and 1.65 exterior. 18 degree valve angle. Enough wall thickness for CNC machining. Seats and manganese-bronze guides included. Approved for NASCAR touring classes.
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
XX VICTOR SBC 18 DEG BARE-9:1 COMPRESSION - Part number: EDL-77519 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77519 - XX VICTOR SBC 18 DEG BARE-9:1 COMPRESSION engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Small Block (262-400)
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Flange Type
- Extended
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor
- Series
- Victor
- CNC Ported
- No
- Combustion Chamber Volume
- 52 CCM
- Construction Type
- Bare
- Deck Thickness
- .700 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Horsepower
- 500-600 HJ
- Exhaust Port Location
- Raised
- Exhaust Runner Volume
- Pro-Port
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- Pro-Port
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 18 DD
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 30.85 lb
