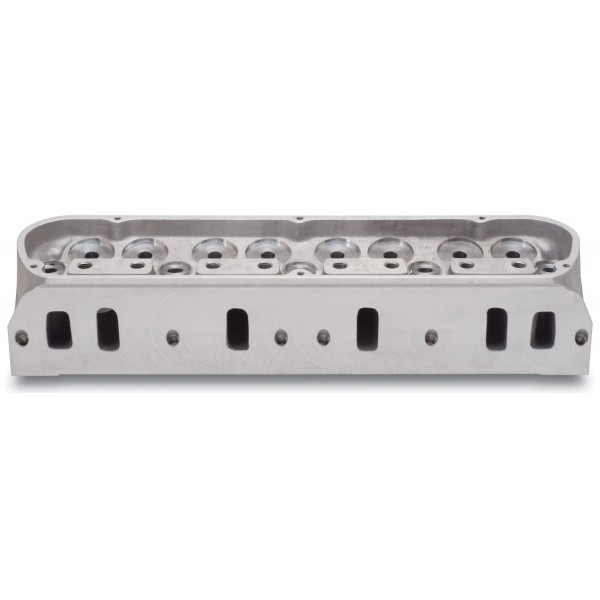

CYL HEAD SBF VICTOR JR 20 DEG 210cc 70cc CHAMBER COMPLETE W/SPRINGS FOR MECHANIC
Availability:
Out-of-Stock
Description
The Edelbrock 77309 Victor Jr. Small Block Ford cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience., VICTOR JR. 20 Deg210cc FEATURES:, 500+ horsepower potential out-of-the-box using stock valve train geometry, High-flowing 210cc intake ports and .130in. raised 75cc exhaust ports, Available with 60cc or 70cc combustion chambers, 70cc combustion chambers are ideal for turbocharged and supercharged applications, CNC gasket-matched port entries/exits with blended valve bowls, Spark plug holes and valves are in the stock location, Valve cover rail raised .150in., A relief in the head allows most roller lifters to be changed without removing heads
Ford:Small-Block:289 (4.7L)-351W (5.8L)
Ford:Small-Block:289 (4.7L)-351W (5.8L)
CYL HEAD SBF VICTOR JR 20 DEG 210cc 70cc CHAMBER COMPLETE W/SPRINGS FOR MECHANIC - Part number: EDL-77309 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77309 - CYL HEAD SBF VICTOR JR 20 DEG 210cc 70cc CHAMBER COMPLETE W/SPRINGS FOR MECHANIC engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Ford 302-351W
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- CNC Ported
- No
- Combustion Chamber Volume
- 70.0 CCM
- Deck Thickness
- 0.625 IN
- Guide Plates Included
- Yes
- Head Casting Number
- 7716F
- Exhaust Valve Diameter
- 1.600 IN
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 210.0 CCM
- Intake Valve Diameter
- 2.050 IN
- Push Rod Diameter
- 0.312 IN
- Rocker Stud Diameter
- 0.437 IN
- Valve Angle
- 20 DD
- Valve Spring Diameter
- 1.550 IN
- Valve Spring Maximum Lift
- 0.650 IN
- Valve Stem Diameter
- 0.341 IN
- Deck Height
- 9.5 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 25.75 lb
