VICTOR JR SBF 289-351W-W/VALVES
Availability:
Out-of-Stock
Description

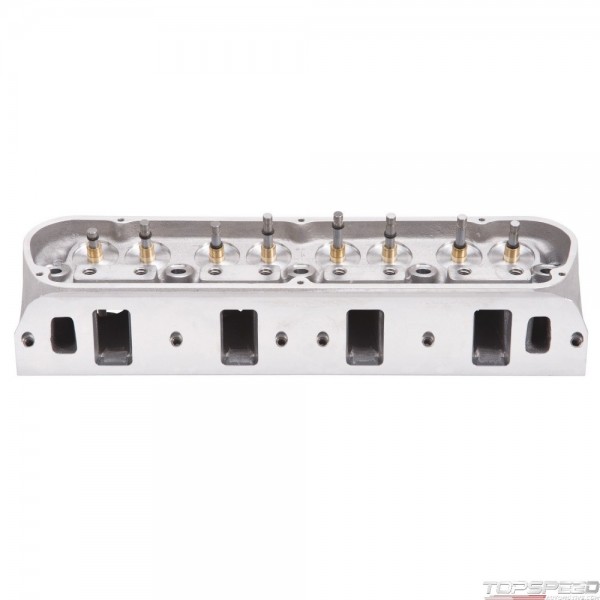

The Edelbrock 77179 Victor Jr. Small Block Ford cylinder head offers high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience., VICTOR JR. 20deg210cc FEATURES:, 500+ horsepower potential out-of-the-box using stock valve train geometry, High-flowing 210cc intake ports and .130in. raised 75cc exhaust ports, Available with 60cc or 70cc combustion chambers, 70cc combustion chambers are ideal for turbocharged and supercharged applications, CNC gasket-matched port entries/exits with blended valve bowls, Spark plug holes and valves are in the stock location, Valve cover rail raised .150in., A relief in the head allows most roller lifters to be changed without removing the head
Ford:Small-Block:289 (4.7L)-351W (5.8L)
Ford:Small-Block:289 (4.7L)-351W (5.8L)
VICTOR JR SBF 289-351W-W/VALVES - Part number: EDL-77179 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 77179 - VICTOR JR SBF 289-351W-W/VALVES engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Ford 260-302
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor Jr.
- Series
- Victor Jr.
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- Yes
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Horsepower
- 350-600 HJ
- Exhaust Port Location
- +.125
- Exhaust Runner Volume
- 75 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 210 CCM
- Intake Valve Diameter
- 2.05 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 20 DD
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 27.20 lb
