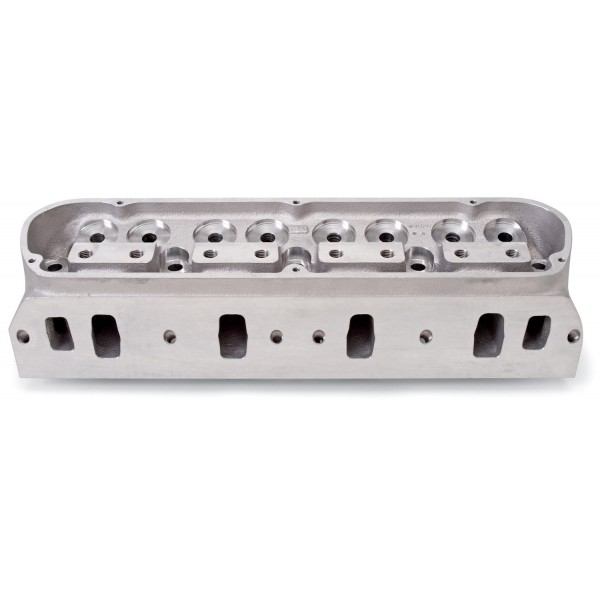

XX CYL HEAD FORD SM PORT VICTOR HIPped
Availability:
Out-of-Stock
Description
Bare unported Edelbrock Victor Jr. 61269. Chamber size 36cc. Bare. Seat and guides included but not installed. For small block.
Ford:Small-Block Race
Ford:Small-Block Race
XX CYL HEAD FORD SM PORT VICTOR HIPped - Part number: EDL-770869 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 770869 - XX CYL HEAD FORD SM PORT VICTOR HIPped engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Ford 302-351W
- Emission
- Non-Emissions
- Finish
- Cast Steel
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor
- Series
- Pro-Port
- CNC Ported
- No
- Construction Type
- Pro-Port Raw
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Valve Diameter
- (Suggested) 1.64 IN
- Guide Material
- Manganese Bronze
- Intake Valve Diameter
- (Suggested) 2.18 IN
- Valve Angle
- 15 DD
- Specialty
- Hot Isostatic Pressing (HIP) Processing
- Exhaust Port Entry
- 1.33 in x 1.24 IN
- Exhaust Valve Pierce Points (X,Y)(C)
- 0.805 in, 0.006 IN
- Intake Port Entry
- 1.00 in x 1.85 IN
- Intake Valve Pierce Points (X,Y)(C)
- 1.130 in, 0.006 IN
- Valve Guides Included
- Yes
- Valve Seats Included
- Yes
- Valve Spacing
- 1.910 IN
- Chamber Size (A)
- 36 CCM
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 33.00 lb
