CYL HEAD PRO PORT VICTOR LSR GM GEN 3-4 LS SERIES HIPped
Availability:
Out-of-Stock
Description

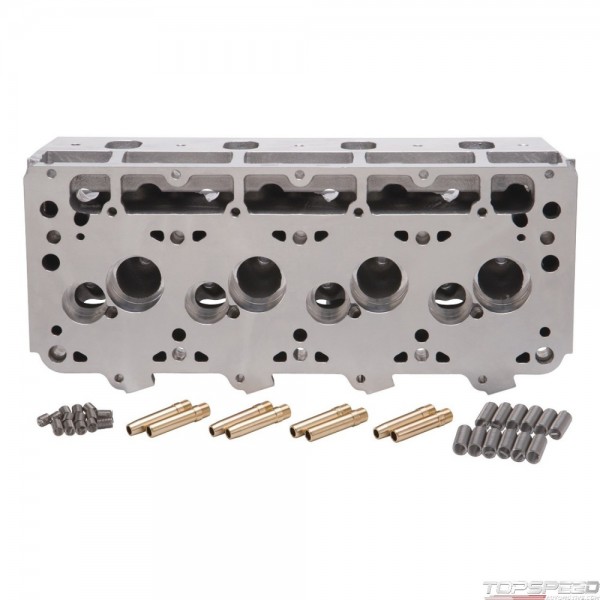

The Edelbrock 770469 Small Block Chevy LSR Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. , Pro-Port RAW Features Include: ,Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder ,The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting ,The only head designed specifically to accommodate almost any CNC port shape, size or location ,Offers enough wall thickness for CNC machining to various port dimensions ,In most cases seats and manganese-bronze valve guides are included,Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
Chevrolet:Gen III LS-R Race:-,Chevrolet:Gen IV LS-R Race:-
Chevrolet:Gen III LS-R Race:-,Chevrolet:Gen IV LS-R Race:-
CYL HEAD PRO PORT VICTOR LSR GM GEN 3-4 LS SERIES HIPped - Part number: EDL-770469 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 770469 - CYL HEAD PRO PORT VICTOR LSR GM GEN 3-4 LS SERIES HIPped engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Small Block LS1
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor
- Series
- Pro-Port
- CNC Ported
- No
- Combustion Chamber Volume
- Possible 25 CCM
- Construction Type
- Pro-Port Raw
- Deck Thickness
- 0.8000 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Valve Diameter
- (Suggested) 1.68 IN
- Guide Material
- Manganese Bronze
- Intake Valve Diameter
- (Suggested) 2.25 IN
- Valve Angle
- Exhaust 7.0 x 2.0 deg/Intake 8.7 x 3.2 DD
- Specialty
- Hot Isostatic Pressing (HIP) Processing
- Exhaust Port Entry
- 1.55 in x 1.30 IN
- Exhaust Valve Pierce Points (X,Y)(C)
- -1.178 in, -0.238 IN
- Intake Port Entry
- 1.32 in x 1.97 IN
- Intake Valve Pierce Points (X,Y)(C)
- 0.652 in, 0.448 IN
- Valve Guides Included
- Yes
- Valve Seats Included
- No
Package dimensions
Width: 11.00 inch
Height: 8.50 inch
Depth: 26.00 inch
Weight: 40.60 lb
