CYL HEAD CHEVY LS E-CNC VICTOR LSR GEN III-IV HIP d BARE
Availability:
Out-of-Stock
Description

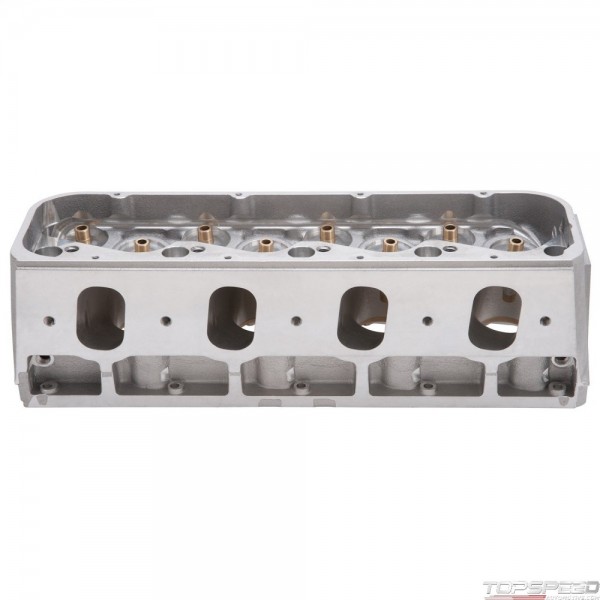

The Edelbrock 770468 Victor LS-R CNC cylinder head is ideal for use with Chevrolet Performance LSX and similar engine blocks in ultra high performance competition applications. It starts with our Pro-Port Raw casting and is then fully CNC machined to meet the demands of a high output race engine. The casting is made from A-356 aluminum and is Hot Isostatic Pressing processed (HIP) for superior strength, durability, dimensional stability and exceptional finish quality. It also features an exhaust port flange that has been raised 0.875in. for improved air flow. It also includes deeper rocker bolt holes for improved support and stability at high rpm. Victor LS-R CNC cylinder head has fully CNC'd intake ports, combustion chambers and exhaust ports. Compatible with GM SB2 valve covers. Will require an aftermarket rocker system. Pro-Port Raw version PN: 770469 is available for custom porting applications.
Chevrolet:Gen III LS-R Race:-,Chevrolet:Gen IV LS-R Race:-
Chevrolet:Gen III LS-R Race:-,Chevrolet:Gen IV LS-R Race:-
CYL HEAD CHEVY LS E-CNC VICTOR LSR GEN III-IV HIP d BARE - Part number: EDL-770468 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 770468 - CYL HEAD CHEVY LS E-CNC VICTOR LSR GEN III-IV HIP d BARE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy LSX
- Emission
- Non-Emissions
- Finish
- Raw Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Factory CNC Ported
- CNC Ported
- Yes
- Combustion Chamber Volume
- 48.0 CCM
- Guide Plates Included
- No
- Head Casting Number
- 77049P
- Exhaust Valve Diameter
- 1.590 IN
- Intake Runner Volume
- 358.0 CCM
- Intake Valve Diameter
- 2.240 IN
- Deck Height
- 9.240 IN
Package dimensions
Width: 11.00 inch
Height: 8.50 inch
Depth: 26.00 inch
Weight: 40.60 lb
