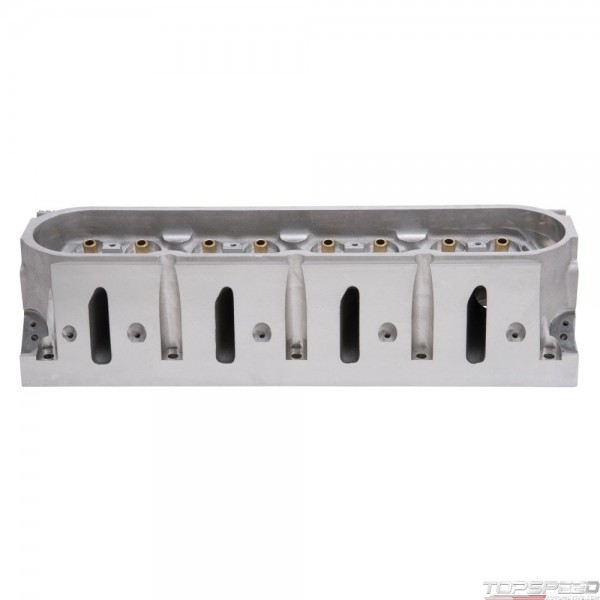

XX CYL HEAD EDEL PERF RPM GM GEN III (LS SERIES) CNC PORTERS (BARE) HIPped
Availability:
Out-of-Stock
Description
This head is designed to maximize the potential of GMS race oriented LSX block. it is also compatible with all previous versions of the engine. The true canted valve design offers the utmost in port flow and combustion efficiency possible with a two valve design. The head uses the GM SB2 valve cover footprint required by the added width of the canted valve layout. The stock exhaust bolt pattern is retained. Like all Edelbrock Pro-Port Raw heads, they will require professional preparation, including CNC porting to the port design of choice. Valve guides are included but not installed. This head has been HIP processed to increase density and provide the heads with extreme durability.
Chevrolet:Small-Block Gen III LM7:325 (5.3L),Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LC9:325 (5.3L),Chevrolet:Small-Block Gen IV LH8:325 (5.3L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LMG:325 (5.3L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L),Chevrolet:Small-Block Corvette Gen IV LS2:364 (6.0L)
Chevrolet:Small-Block Gen III LM7:325 (5.3L),Chevrolet:Small-Block Gen III LS1:346 (5.7L),Chevrolet:Small-Block Gen III LS2:364 (6.0L),Chevrolet:Small-Block Gen IV LC9:325 (5.3L),Chevrolet:Small-Block Gen IV LH8:325 (5.3L),Chevrolet:Small-Block Gen IV LMF:325 (5.3L),Chevrolet:Small-Block Gen IV LMG:325 (5.3L),Chevrolet:Small-Block Gen IV LY5:325 (5.3L),Chevrolet:Small-Block Corvette Gen IV LS2:364 (6.0L)
XX CYL HEAD EDEL PERF RPM GM GEN III (LS SERIES) CNC PORTERS (BARE) HIPped - Part number: EDL-619869 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 619869 - XX CYL HEAD EDEL PERF RPM GM GEN III (LS SERIES) CNC PORTERS (BARE) HIPped engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Small Block LS1
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- E-CNC
- Series
- Pro-Port
- CNC Ported
- No
- Construction Type
- Pro-Port Raw
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Valve Diameter
- (Suggested) 1.64 IN
- Guide Material
- Manganese Bronze
- Intake Valve Diameter
- (Suggested) 2.08 IN
- Valve Angle
- 15 DD
- Specialty
- Hot Isostatic Pressing (HIP) Processing
- Exhaust Port Entry
- 1.41 in x 1.02 IN
- Exhaust Valve Pierce Points (X,Y)(C)
- 1.090 in, 0.010 IN
- Intake Port Entry
- 0.82 in x 2.80 IN
- Intake Valve Pierce Points (X,Y)(C)
- 0.820 in, 0.010 IN
- Valve Guides Included
- Yes
- Valve Seats Included
- Yes
- Valve Spacing
- 1.910 IN
- Chamber Size (A)
- 38 CCM
Package dimensions
Width: 11.00 inch
Height: 8.50 inch
Depth: 26.25 inch
Weight: 31.30 lb
