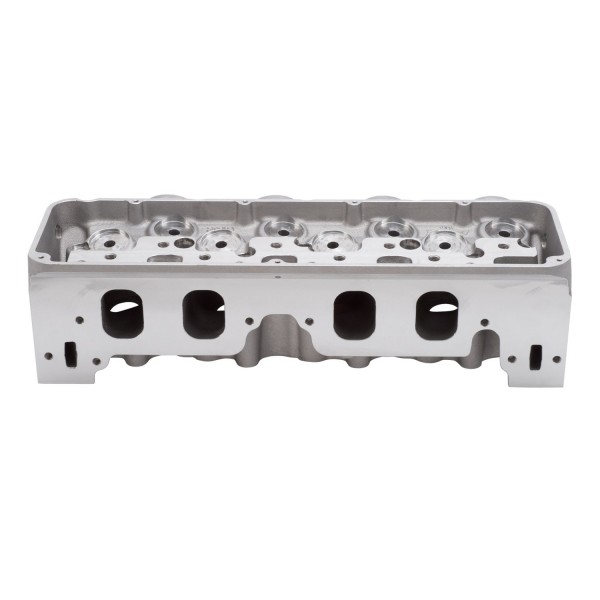

CYL HEAD BBC BIG VICTOR (PRO PORT) HIP d 12 DEG INTAKE VALVE
Availability:
Out-of-Stock
Description
The Edelbrock 618269 Big Block Chevy 12deg Pro-Port Cylinder head is designed specifically for the professional cylinder head porter and engine builder. Like the other Edelbrock Cylinder head, The Pro-Port cylinder head is also cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting. In most cases, seats and manganese-bronze valve guides are included, but not installed. Please note: This head can not be used without professional head preparation. , Pro-Port RAW Features Include: ,Unported versions of Edelbrock race-winning Victor Series CNC head for the professional cylinder head porter and engine builder ,The Pro-Port cylinder head is cast in the USA at the state-of-the-art Edelbrock Foundry with extra-thick walls to allow for custom CNC porting ,The only head designed specifically to accommodate almost any CNC port shape, size or location ,Offers enough wall thickness for CNC machining to various port dimensions ,In most cases seats and manganese-bronze valve guides are included,Some of the Edelbrock Pro-Port Raw Head Feature Our Special Hot Isostatic Pressing or HIP Process.
Chevrolet:Big-Block Race
Chevrolet:Big-Block Race
CYL HEAD BBC BIG VICTOR (PRO PORT) HIP d 12 DEG INTAKE VALVE - Part number: EDL-618269 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 618269 - CYL HEAD BBC BIG VICTOR (PRO PORT) HIP d 12 DEG INTAKE VALVE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- Non-Emissions
- Finish
- Cast
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Big Victor
- Series
- Pro-Port
- CNC Ported
- No
- Combustion Chamber Volume
- N/A
- Construction Type
- Pro-Port Raw
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Valve Diameter
- (Suggested) 1.85 IN
- Guide Material
- Manganese Bronze
- Intake Valve Diameter
- (Suggested) 2.45 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 12 DD
- Specialty
- Hot Isostatic Pressing (HIP) Processing
- Exhaust Port Entry
- 1.84 in x 1.50 IN
- Exhaust Valve Pierce Points (X,Y)(C)
- 1.120 in, -0.420 IN
- Intake Port Entry
- 1.53 in x 2.14 IN
- Intake Valve Pierce Points (X,Y)(C)
- -0.854 in, 0.455 IN
- Valve Guides Included
- Yes
- Valve Seats Included
- Yes
Package dimensions
Width: 11.00 inch
Height: 9.50 inch
Depth: 26.00 inch
Weight: 43.40 lb
