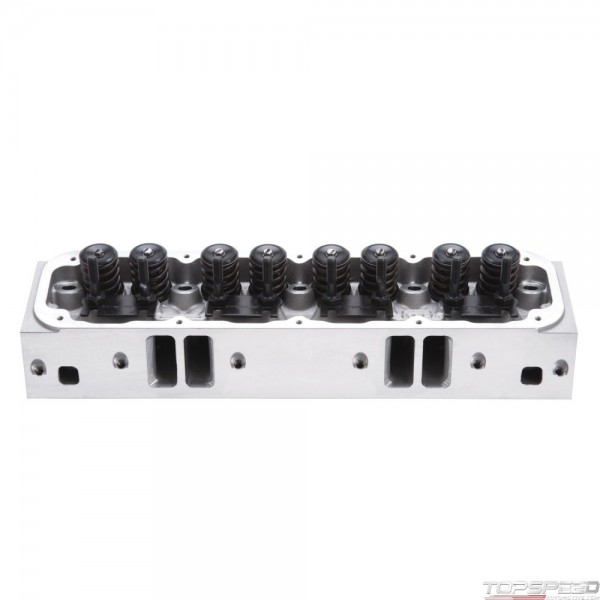

CYL HEAD SB CHRYSLER PERF RPM 5.2/5.9L MAGNUM FOR HYD ROLLER CAMS COMPLETE
Availability:
Out-of-Stock
Description
The Edelbrock PN: 61775 Performer RPM cylinder head is designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. The Edelbrock PN: 61775 Performer RPM head is perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
CYL HEAD SB CHRYSLER PERF RPM 5.2/5.9L MAGNUM FOR HYD ROLLER CAMS COMPLETE - Part number: EDL-61775 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61775 - CYL HEAD SB CHRYSLER PERF RPM 5.2/5.9L MAGNUM FOR HYD ROLLER CAMS COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Mopar 318/360 Magnum
- Emission
- N/A
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- Performer RPM
- Series
- Performer RPM
- CNC Ported
- No
- Combustion Chamber Volume
- 58 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 350-500 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 75 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 176 CCM
- Intake Valve Diameter
- 2.02 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 18 DD
- Valve Spring Diameter
- 1.46 IN
- Valve Spring Maximum Lift
- 0.580 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 10.50 inch
Height: 8.25 inch
Depth: 24.75 inch
Weight: 32.60 lb
