Description

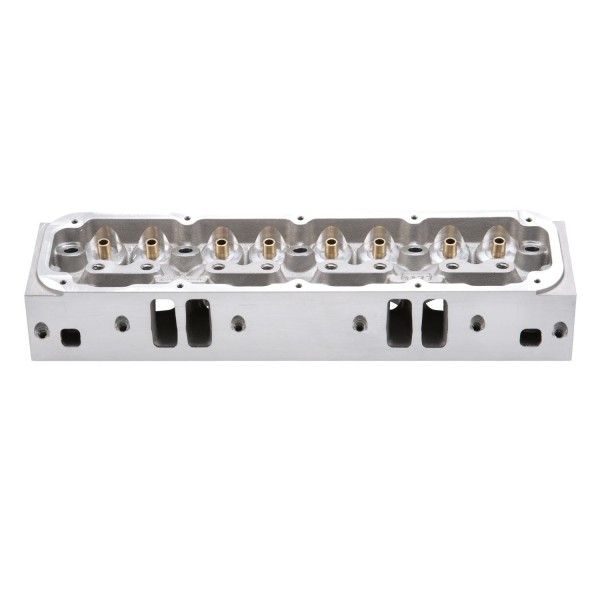

The Edelbrock PN: 61767 Performer RPM Bare NHRA Stock/Super Stock cylinder heads are designed for use with 1992 & later 5.2L (318 c.i.d.) and 1993 & later 5.9L (360 c.i.d.) Chrysler Magnum style V8 applications. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, Edelbrock heads are the best in quality and performance. All Edelbrock Cylinder Heads are designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder heads offer improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
CYL HEAD PERF RPM SBM MAGNUM NHRA LEGAL BARE - Part number: EDL-61767 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61767 - CYL HEAD PERF RPM SBM MAGNUM NHRA LEGAL BARE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Mopar 318-360
- Emission
- N/A
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- CNC Ported
- No
- Combustion Chamber Volume
- 63.0 CCM
- Deck Thickness
- 0.562 IN
- Guide Plates Included
- No
- Head Casting Number
- 31-6177
- Intake Runner Volume
- 176 CCM
- Push Rod Diameter
- 0.312 IN
- Valve Angle
- 16 DD
- Deck Height
- 9.600 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 27.30 lb
