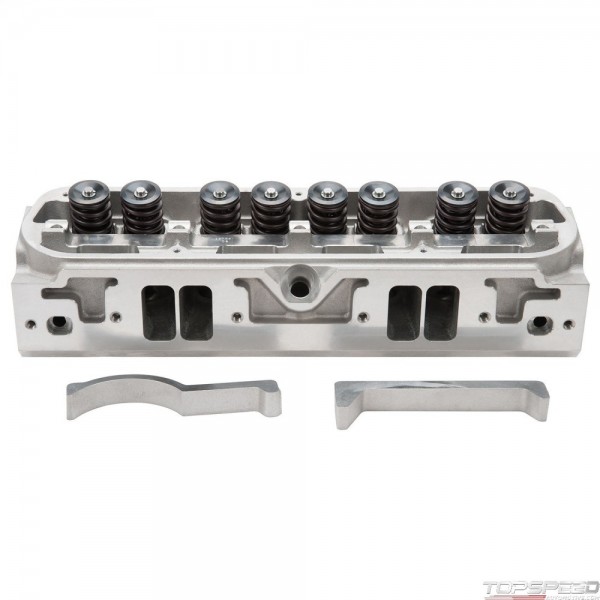

CYL HEAD SB CHRYSLER E-CNC VICTOR IN-LINE 16 DEG COMPLETE W/SOLID ROLLER SPRING
Availability:
Out-of-Stock
Description
These Edelbrock PN: 61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4in. and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor PN: 2815. Finally, a 5.56in. overall length valve (+0.600in. from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available, bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
CYL HEAD SB CHRYSLER E-CNC VICTOR IN-LINE 16 DEG COMPLETE W/SOLID ROLLER SPRING - Part number: EDL-61729 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61729 - CYL HEAD SB CHRYSLER E-CNC VICTOR IN-LINE 16 DEG COMPLETE W/SOLID ROLLER SPRING engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Mopar 318-360
- Emission
- Non-Emissions
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- 16 Degree
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Solid Roller
- Family
- Victor
- Series
- Victor
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 500-650 HJ
- Exhaust Port Location
- +.500
- Exhaust Runner Volume
- 62 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 225 CCM
- Intake Valve Diameter
- 2.15 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 16 DD
- Valve Spring Diameter
- 1.55 IN
- Valve Spring Maximum Lift
- 0.670 IN
- Valve Stem Diameter
- 0.3438 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 50.00 lb
