CYL HEAD SB CHRYSLER E-CNC VICTOR IN-LINE 16 DEG BARE SINGLE

Manufacturer: EDELBROCK

Part number: 61709

MPN: 61709

UPC: 085347617098

Availability: Out-of-Stock

£0.00

Tax included

Call to check: 0044 (0) 1933 225 564

Description

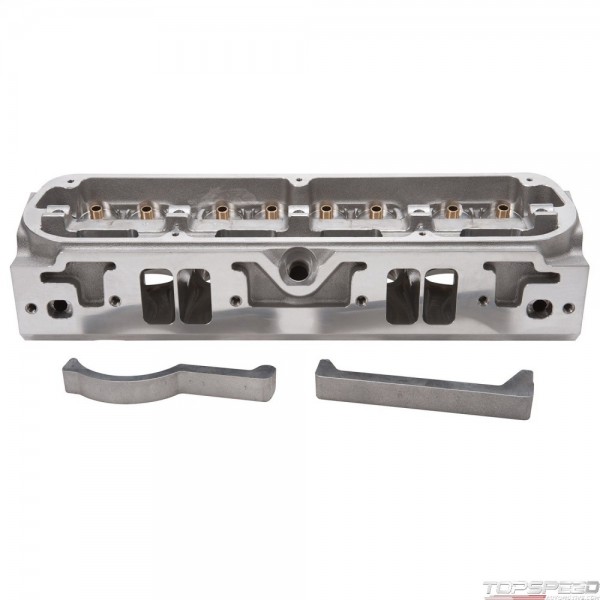

The Edelbrock PN: 61719 Victor Series Bare cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. These cylinder heads are an in-line valve design incorporating a 16 Deg valve angle (stock is 18 Deg ) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4in. and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor PN: 2815. Finally, a 5.56in. overall length valve (+0.600in. from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available, bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.

Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)

CYL HEAD SB CHRYSLER E-CNC VICTOR IN-LINE 16 DEG BARE SINGLE - Part number: EDL-61709 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 61709 - CYL HEAD SB CHRYSLER E-CNC VICTOR IN-LINE 16 DEG BARE SINGLE engine-cylinder-head

Data sheet

Type: Bare
Engine Make/Size: Mopar 318-360
Emission: Non-Emissions
Finish: Satin
Material: Aluminum
Usage: Racing
Cylinder Head Type: 16 Degree
Grade Type: Performance
Preparation: Requires Professional Preparation (Bare)
CNC Ported: No
Combustion Chamber Volume: 60.0 CCM
Deck Thickness: 0.562 IN
Guide Plates Included: No
Head Casting Number: 6170F
Intake Runner Volume: 225.0 CCM
Push Rod Diameter: 0.312 IN
Valve Angle: 16 DD
Deck Height: 9.600 IN

Package dimensions

Width: 10.44 inch
Height: 8.19 inch
Depth: 24.75 inch
Weight: 50.00 lb
