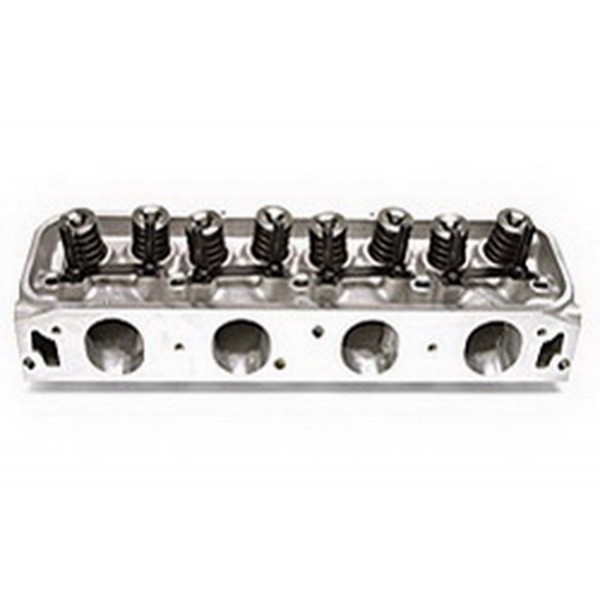

POLISHED (NR) 514 FORD CJ 75CC VIC JR. COMPLETE-(BIG BLOCK)

Manufacturer: EDELBROCK
Part number: 616619
MPN: 616619
UPC: 085347994236
Availability: Out-of-Stock
£0.00
Tax included

Description

The Edelbrock 616619 Ford 460 CJ Victor Jr. Series cylinder heads offer high horsepower potential on competition level engines and are compatible with OE valve train and pistons for bolt-on convenience., VICTOR JR. 460 CJ310cc FEATURES:, Designed for 1968-87 429/460 Fords and the SVO 514 engine, Machined profile Cobra Jet-style intake port entries, Victor Jr. heads PN: 61669 are complete with titanium retainers and high-quality valve springs suitable for use with solid roller camshafts

Ford:Big-Block:429 (7.0L )/460 (7.5L)

POLISHED (NR) 514 FORD CJ 75CC VIC JR. COMPLETE-(BIG BLOCK) - Part number: EDL-616619 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 616619 - POLISHED (NR) 514 FORD CJ 75CC VIC JR. COMPLETE-(BIG BLOCK) engine-cylinder-head

Data sheet

Type
Complete
Engine Make/Size
Ford 429-460
Emission
Non-Emissions
Finish
Polished
Material
Aluminum
Usage
Street/Performance
Cylinder Head Type
Standard
Grade Type
Performance
Preparation
Bolt On (Not Required)
CNC Ported
No
Combustion Chamber Volume
75.0 CCM
Deck Thickness
0.625 IN
Guide Plates Included
Yes
Head Casting Number
31-6067
Exhaust Valve Diameter
1.760 IN
Intake Runner Volume
310.0 CCM
Intake Valve Diameter
2.190 IN
Push Rod Diameter
0.375 IN
Rocker Stud Diameter
0.437 IN
Valve Spring Diameter
1.580 IN
Valve Spring Maximum Lift
0.730 IN
Valve Stem Diameter
0.341 IN
Deck Height
10.322 IN

Package dimensions

Width: 11.20 inch
Height: 8.60 inch
Depth: 26.00 inch
Weight: 39.50 lb
