CYL HEAD BBC BV3 HIP d 11 DEG INTAKE VALVE CNC PORTED
Availability:
Out-of-Stock
Description

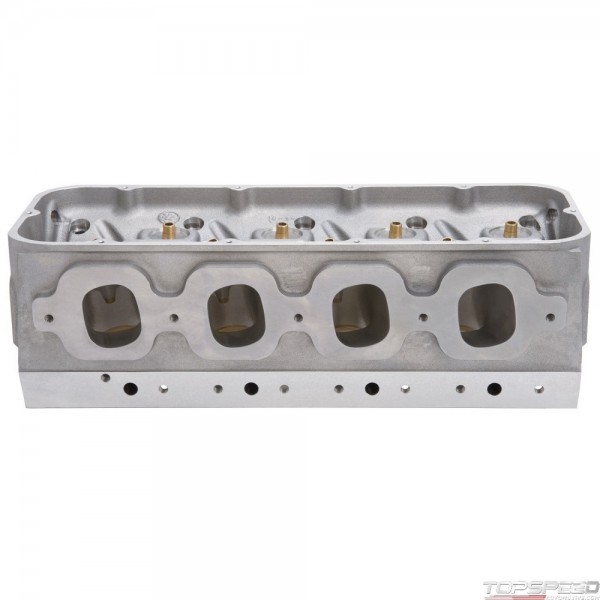

The Edelbrock 614668 Big Victor III 11 Deg cylinder heads feature a fully cnc ported symmetrical port design for the Sportsman racer.?They are similar to the Pro Stock DCE3?Cylinder Heads?and are CNC ported matched to popular Edelbrock, Brodix, CFE, Dart and Sonny Racing Engines blocks. They have more oil drain backs than traditional spread-port heads for improved oil flow and distribution.?These?cylinder heads?include a new water passage design for more efficient cooling when matched with an Edelbrock BV3 valley plate and also retain the traditional water passage for a variety of applications. These cylinder?heads?have a redesigned valve train geometry for improved stability, delivering consistency and reliability.?The casting is Hot Isostatic Pressing (HIP)?processed for superior strength, durability and exceptional finish quality.
Chevrolet:Big-Block Race
Chevrolet:Big-Block Race
CYL HEAD BBC BV3 HIP d 11 DEG INTAKE VALVE CNC PORTED - Part number: EDL-614668 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 614668 - CYL HEAD BBC BV3 HIP d 11 DEG INTAKE VALVE CNC PORTED engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- N/A
- Finish
- Satin
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Rectangular Port
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- CNC Ported
- Yes
- Combustion Chamber Volume
- 76.0 CCM
- Guide Plates Included
- No
- Head Casting Number
- 31-6146
- Intake Runner Volume
- 550.0 CCM
- Valve Angle
- 11 DD
- Deck Height
- 9.8 IN
Package dimensions
Width: 9.00 inch
Height: 12.12 inch
Depth: 26.50 inch
Weight: 70.00 lb
