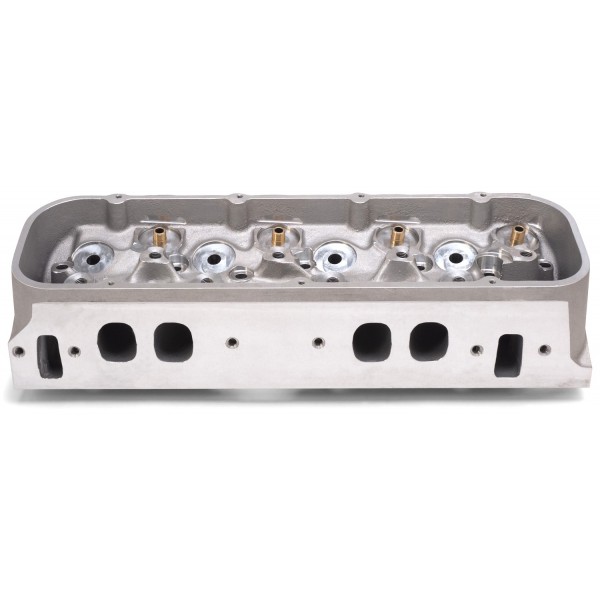

XX CYL HEAD EDEL/MUSI PRO PORTER BBC VICTOR 24 DEG HIPped
Availability:
Out-of-Stock
Description
For professional cylinder head porter. Available in 38 or 94 cc chamber size. As-cast casting has small ports and chambers. Max valve size is 2.45 interior and 1.96 exterior. 24 degree valve angle. Enough wall thickness for CNC machining. Seats and manganese-bronze guides included. Unported HIPd version of Edelbrock and Musi Victor.
Chevrolet:Big-Block Race
Chevrolet:Big-Block Race
XX CYL HEAD EDEL/MUSI PRO PORTER BBC VICTOR 24 DEG HIPped - Part number: EDL-614269 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 614269 - XX CYL HEAD EDEL/MUSI PRO PORTER BBC VICTOR 24 DEG HIPped engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Big Block (396-502)
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Victor
- Series
- Pro-Port
- CNC Ported
- No
- Construction Type
- Pro-Port Raw
- Deck Thickness
- Minimum 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Guide Material
- Manganese Bronze
- Valve Angle
- 24 DD
- Specialty
- Hot Isostatic Pressing (HIP) Processing
- Exhaust Port Entry
- Minimum Diameter 2 IN
- Exhaust Valve Pierce Points (X,Y)(C)
- 1.49 in x 1.13 IN
- Intake Port Entry
- 2.473 in x 1.880 IN
- Intake Valve Pierce Points (X,Y)(C)
- 1.47 in x 1.73 IN
- Chamber Size (A)
- 38 CCM
Package dimensions
Width: 11.00 inch
Height: 9.00 inch
Depth: 26.00 inch
Weight: 44.00 lb
