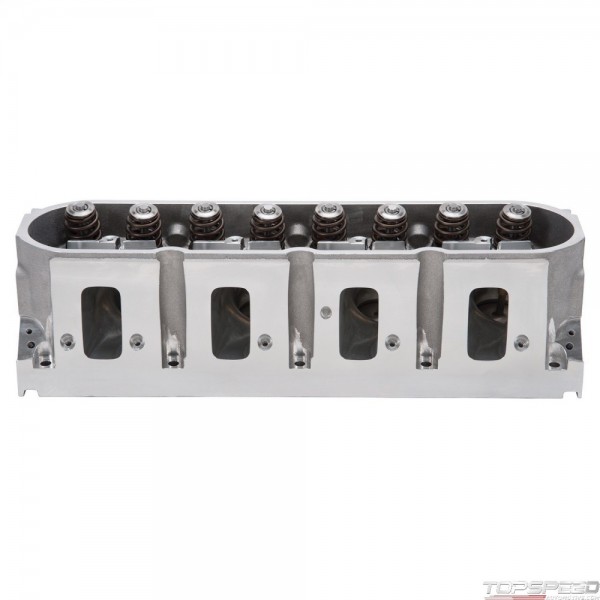

CYL HEAD LS3 GM GEN III/IV VICTOR JR STD BLOCK
Availability:
Out-of-Stock
Description
The Edelbrock PN: 61339 Victor Jr. LS3 cylinder head is ideal for use in high Performance's street and competition engines that have reached their limit with a stock-style cylinder head design. Most aftermarket LS3 cylinder head on the market today are simply stock head designs with larger ports. Our Victor Jr. LS3 cylinder head is an all-new ground up design that incorporates subtle changes for improved flow and combustion. These changes were made to improve the limitations encountered in the stock cylinder head when increasing the performance level of the engine. Changes include a 2.20in. diameter intake valve with a canted configuration similar to what is utilized in the GM LT1 Gen V engine. The intake valve change along with the unique port shape produce almost 400cfm peak flow. This cylinder head also feature fully CNC intake ports, combustion chambers and exhaust ports for consistency and improved performance. All of these changes make this cylinder head capable of producing 600+ hp on an LS3 engine with stock rocker arms, intake manifold and exhaust manifolds.
Chevrolet:Small-Block Gen IV L76:364 (6.0L),Chevrolet:Small-Block Gen IV L77:364 (6.0L),Chevrolet:Small-Block Gen IV L92:376 (6.2L),Chevrolet:Small-Block Gen IV L94:376 (6.2L),Chevrolet:Small-Block Gen IV L99:376 (6.2L),Chevrolet:Small-Block Gen IV L9H:376 (6.2L),Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
Chevrolet:Small-Block Gen IV L76:364 (6.0L),Chevrolet:Small-Block Gen IV L77:364 (6.0L),Chevrolet:Small-Block Gen IV L92:376 (6.2L),Chevrolet:Small-Block Gen IV L94:376 (6.2L),Chevrolet:Small-Block Gen IV L99:376 (6.2L),Chevrolet:Small-Block Gen IV L9H:376 (6.2L),Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
CYL HEAD LS3 GM GEN III/IV VICTOR JR STD BLOCK - Part number: EDL-61339 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61339 - CYL HEAD LS3 GM GEN III/IV VICTOR JR STD BLOCK engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy LS3
- Emission
- Non-Emissions
- Finish
- Cast
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- Victor Jr.
- Series
- Victor Jr.
- CNC Ported
- No
- Combustion Chamber Volume
- 69 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- CARB Executive Order Number
- D-215-98
- Horsepower
- 500-650 HJ
- Exhaust Port Location
- +.125
- Exhaust Runner Volume
- 85 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 280 CCM
- Intake Valve Diameter
- 2.20 IN
- Seat Angle
- Exhaust 39 deg/Intake 37 DD
- Seat Material
- Ductile Iron
- Valve Angle
- Exhaust 11 X 0 deg/Intake 11 x 3 DD
- Valve Spring Diameter
- 1.30 IN
- Valve Spring Maximum Lift
- 0.680 IN
- Valve Stem Diameter
- 0.314961 IN
Package dimensions
Width: 10.13 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 24.85 lb
