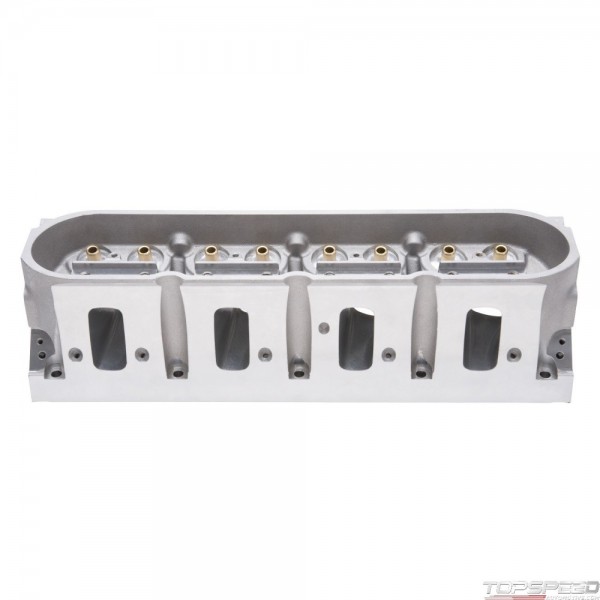

CYL HEAD LS3 GM GEN III/IV CNC SM PORT 13.25 DEG VALVE ANGLE STD BLOCK
Availability:
Out-of-Stock
Description
The Edelbrock PN: 61319 E-CNC LS3 cylinder head is a great general-purpose high performance cylinder head for any street- strip LS engine. This cylinder head has a high velocity port compared to stock LS3 cylinder head, making them an ideal upgrade for any cathedral port or 3.89in. bore LS application. They feature an improved design and casting that gives cylinder head porters more material to work with compared to another stock head. Like all of our other E-CNC cylinder head, these feature fully CNC'd intake ports, combustion chambers and exhaust ports for improved performance. Compatible with stock style rocker arms.
Chevrolet:Small-Block Gen IV L76:364 (6.0L),Chevrolet:Small-Block Gen IV L77:364 (6.0L),Chevrolet:Small-Block Gen IV L92:376 (6.2L),Chevrolet:Small-Block Gen IV L94:376 (6.2L),Chevrolet:Small-Block Gen IV L99:376 (6.2L),Chevrolet:Small-Block Gen IV L9H:376 (6.2L),Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
Chevrolet:Small-Block Gen IV L76:364 (6.0L),Chevrolet:Small-Block Gen IV L77:364 (6.0L),Chevrolet:Small-Block Gen IV L92:376 (6.2L),Chevrolet:Small-Block Gen IV L94:376 (6.2L),Chevrolet:Small-Block Gen IV L99:376 (6.2L),Chevrolet:Small-Block Gen IV L9H:376 (6.2L),Chevrolet:Small-Block Gen IV LS3:376 (6.2L)
CYL HEAD LS3 GM GEN III/IV CNC SM PORT 13.25 DEG VALVE ANGLE STD BLOCK - Part number: EDL-61319 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61319 - CYL HEAD LS3 GM GEN III/IV CNC SM PORT 13.25 DEG VALVE ANGLE STD BLOCK engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy LS3
- Emission
- N/A
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- E-CNC
- Series
- E-CNC
- CNC Ported
- Yes
- Combustion Chamber Volume
- 69 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- CARB Executive Order Number
- D-215-98
- Horsepower
- 400-500 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 80 CCM
- Exhaust Valve Diameter
- 1.55 IN
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 230 CCM
- Intake Valve Diameter
- 2.135 IN
- Seat Angle
- Exhaust 39 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 13.25 DD
- Valve Spring Diameter
- 1.30 IN
- Valve Spring Maximum Lift
- 0.680 IN
- Valve Stem Diameter
- 0.314961 IN
Package dimensions
Width: 10.88 inch
Height: 8.38 inch
Depth: 26.00 inch
Weight: 30.90 lb
