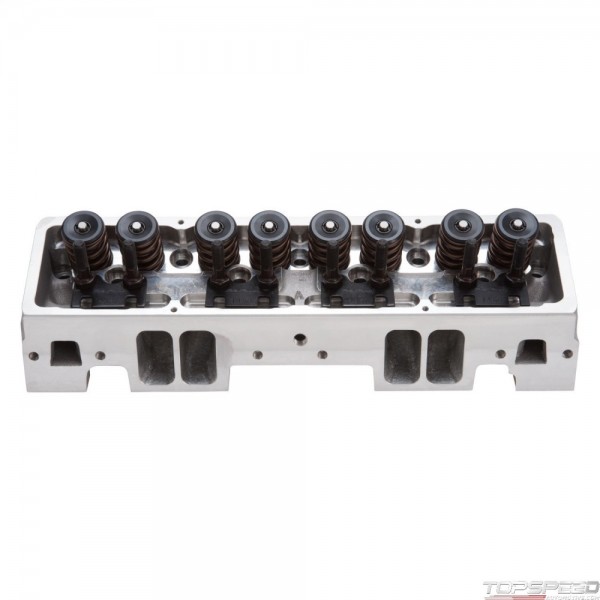

CYL HEAD SBC 23 DEG VICTOR E-CNC 225 SOLID ROLLER
Availability:
Out-of-Stock
Description
The Edelbrock part PN: 61209 Small Block Chevy E-CNC 225 cylinder head offers the ultimate performance. This cylinder head is fully CNC ported for maximum horsepower and torque, making them ideal for high-performance's street and racing applications. They also feature high-quality lightweight valve springs and heavy duty hardware for maximum lift., E-CNC S/B CHEVY FEATURES:,Features fully CNC machined intake ports, combustion chambers and exhaust ports for improved performance,Maintains the stock 23deg valve angle and intake flange bolt pattern for use with 1986 and earlier intake manifolds,Delivers up to 30-60 horsepower over Performer RPM cylinder head,PN: 61205 & PN: 61209 features 7/16in. studs and angled spark plugs,Ideal for high Performance's street and racing applications
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
CYL HEAD SBC 23 DEG VICTOR E-CNC 225 SOLID ROLLER - Part number: EDL-61209 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61209 - CYL HEAD SBC 23 DEG VICTOR E-CNC 225 SOLID ROLLER engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Small Block (262-400)
- Emission
- Non-Emissions
- Finish
- N/A
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Mechanical Roller
- Family
- E-CNC
- Series
- E-CNC
- CNC Ported
- Yes
- Combustion Chamber Volume
- 64 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 500-600 HJ
- Exhaust Port Location
- +.200
- Exhaust Runner Volume
- 88 CCM
- Exhaust Valve Diameter
- 1.60 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 225 CCM
- Intake Valve Diameter
- 2.10 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.4375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 23 DD
- Valve Spring Diameter
- 1.58 IN
- Valve Spring Maximum Lift
- 0.700 IN
- Valve Stem Diameter
- 0.3110 IN
- Rotor Center Bore Inside Diameter
- Angled
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 33.00 lb
