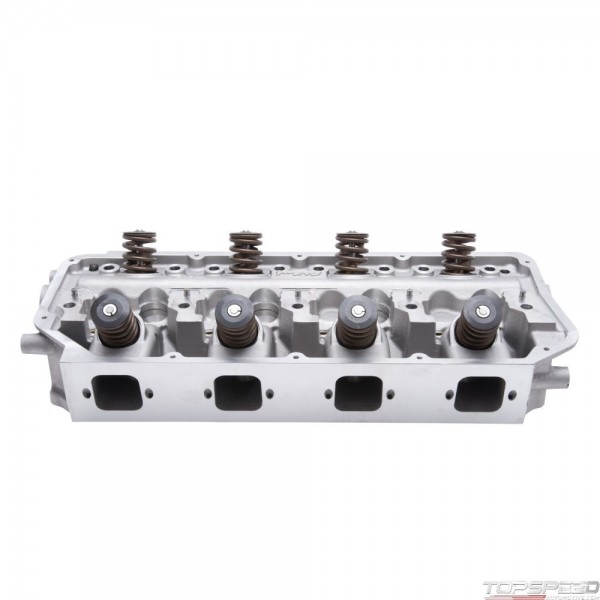

CYL HEAD CHRYSLER 426-572 CNC HEMI COMPLETE SINGLE HYD ROLLER CAM
Availability:
Out-of-Stock
Description
Our new Edelbrock PN: 61175 Victor Jr. cylinder head is designed for high output 650+ hp Chrysler 426-572 HEMI engines. They feature fully CNC'd combustion chambers and CNC blended seats for optimal air flow performance. This cylinder head also feature a revised exhaust valve angle to accommodate larger intake valves. They also feature brass tubes installed in exhaust pushrod holes to allow maximum clearance with minimal port intrusion.
Chrysler:Big-Block Gen II HEMI:426 (7.0L)
Chrysler:Big-Block Gen II HEMI:426 (7.0L)
CYL HEAD CHRYSLER 426-572 CNC HEMI COMPLETE SINGLE HYD ROLLER CAM - Part number: EDL-61175 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61175 - CYL HEAD CHRYSLER 426-572 CNC HEMI COMPLETE SINGLE HYD ROLLER CAM engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Mopar 426-572 Hemi
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Rectangular Port
- Grade Type
- Performance
- Preparation
- Factory CNC Ported
- Camshaft Type
- Hydraulic Roller
- Family
- Victor Jr.
- Series
- Victor Jr.
- CNC Ported
- Yes
- Combustion Chamber Volume
- 170 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 550-800 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 105 CCM
- Exhaust Valve Diameter
- 1.94 IN
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 245 CCM
- Intake Valve Diameter
- 2.320 IN
- Push Rod Diameter
- (Suggested) 0.3125 in Or 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- Exhaust (Tipped) 1.5-21.5 deg/Intake Stock
- Valve Spring Diameter
- 1.54 IN
- Valve Spring Maximum Lift
- 0.700 IN
- Valve Stem Diameter
- 0.3125 IN
Package dimensions
Width: 11.12 inch
Height: 8.75 inch
Depth: 26.25 inch
Weight: 35.05 lb
