RPM Gen II Chrysler HEMI Cylinder Head 67cc Complete
Availability:
Out-of-Stock
Description

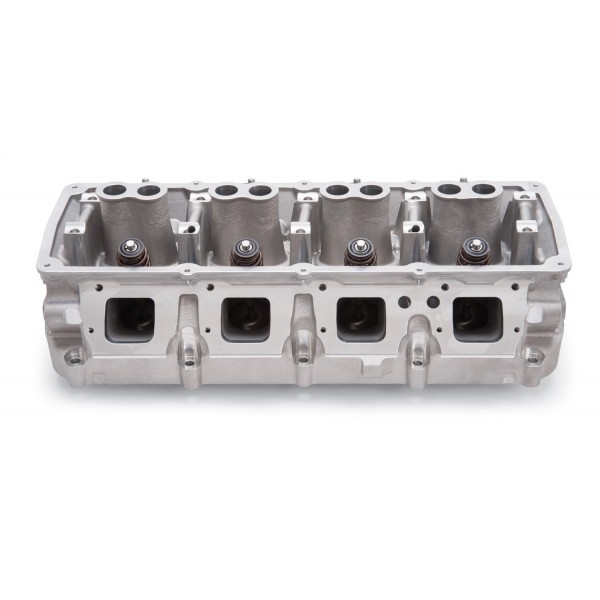

The Edelbrock PN: 61159 Performer RPM cylinder head is a bolt-on performance upgrade for 2009-Present Gen III HEMI 5.7L Eagle engines. It's designed to fit with the stock intake manifold, exhaust manifold, valve cover, rockers, spark plugs and accessories, as well as Hellcat components. this cylinder head have been machined to be used on either the driver or passenger side of the block. They are cast from A356 aluminum and heat treated to T6 specifications, machined and assembled at Edelbrock's facility in Torrance, California for guaranteed quality., The Edelbrock PN: 61159 Performer RPM cylinder head features fully CNC machined combustion chambers along with CNC profiled bowls and port entries/exits for improved air flow. They also feature more material in the deck and reinforced combustion chambers for increased cylinder pressures. The rocker bosses have been reinforced for improved stability and strength. Extra material has been added around the intake and exhaust ports to allow for porting in racing applications. Both the intake and exhaust port flanges have remained in the factory location for use with OEM components. The intake and exhaust valves have been tipped away from bore wall to unshroud the larger valves, while maintaining factory geometry. The seat diameters have also been increased for improved heat transfer and durability over stock. Match with an Edelbrock Victor EFI PN: 7179 intake manifold for the ultimate in Edelbrock Gen III HEMI performance.
Chrysler:Gen III HEMI:345 (5.7L)
Chrysler:Gen III HEMI:345 (5.7L)
RPM Gen II Chrysler HEMI Cylinder Head 67cc Complete - Part number: EDL-61159 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61159 - RPM Gen II Chrysler HEMI Cylinder Head 67cc Complete engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chrysler 5.7/6.1/6.2/6.4 Gen III Vi
- Emission
- Non-Emissions
- Finish
- Cast
- Material
- Aluminum
- Usage
- Street/Strip
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Hydraulic Roller
- Family
- Performer RPM
- Series
- Performer RPM
- CNC Ported
- No
- Combustion Chamber Volume
- 67 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- CARB Executive Order Number
- D-215-119 (For 09-19 5.7L Models)
- Horsepower
- 450-700 HJ
- Exhaust Port Location
- Eagle
- Exhaust Runner Volume
- 75 CCM
- Exhaust Valve Diameter
- 1.650 IN
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 202 CCM
- Intake Valve Diameter
- 2.165 IN
- Push Rod Diameter
- (Suggested) Stock
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- Exhaust 16.8 deg/Intake 18.8 DD
- Valve Spring Diameter
- 1.066 in/ 1.300 IN
- Valve Spring Maximum Lift
- 0.680 IN
- Valve Stem Diameter
- 0.314961 IN
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 24.85 lb
