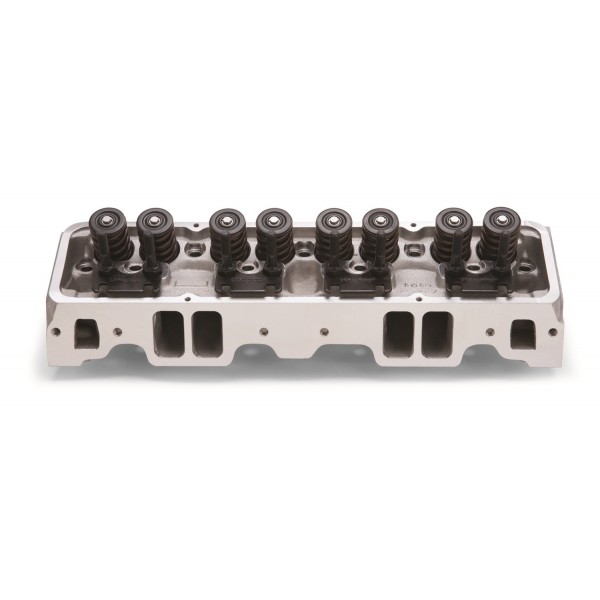

CYL HEAD SBC 23 DEG PERF 170cc INTAKE 60cc CHAMBER FLAT TAPPET CAM COMPLETE
Availability:
Out-of-Stock
Description
Edelbrock part PN: 61019 Performer RPM complete cylinder head is designed for 1955-86 Small-Block Chevy applications that are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. , Cylinder Head Specifications:,Exhaust port location: Stock,Spark plug fitment: 14mm x 3/4 reach, gasket seat
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
CYL HEAD SBC 23 DEG PERF 170cc INTAKE 60cc CHAMBER FLAT TAPPET CAM COMPLETE - Part number: EDL-61019 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 61019 - CYL HEAD SBC 23 DEG PERF 170cc INTAKE 60cc CHAMBER FLAT TAPPET CAM COMPLETE engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy Small Block (262-400)
- Material
- Aluminum
- Usage
- Street/Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Bolt On (Not Required)
- Camshaft Type
- Flat Tappet
- Family
- Performer RPM
- Series
- Performer RPM
- CNC Ported
- No
- Combustion Chamber Volume
- 60 CCM
- Construction Type
- Complete
- Deck Thickness
- 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- Yes
- Quantity
- Sold Individually
- Retainer Included
- Yes
- Valve Included
- Yes
- Valve Springs Included
- Yes
- Head Casting Number
- N/A
- Horsepower
- 250-425 HJ
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 62 CCM
- Exhaust Valve Diameter
- 1.50 IN
- Guide Material
- Manganese Bronze
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 170 CCM
- Intake Valve Diameter
- 1.91 IN
- Push Rod Diameter
- (Suggested) 0.3125 IN
- Rocker Stud Diameter
- 0.375 IN
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 23 DD
- Valve Spring Diameter
- 1.46 IN
- Valve Spring Maximum Lift
- 0.575 IN
- Valve Stem Diameter
- 0.3125 IN
- Rotor Center Bore Inside Diameter
- Straight
Package dimensions
Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 31.37 lb
