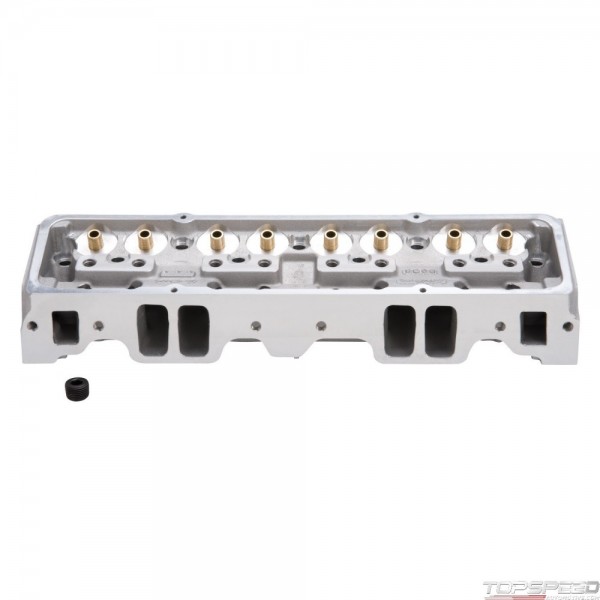

CYL HEAD SBC NHRA LEGAL 64cc STRAIGHT PLUG BARE SINGLE
Availability:
Out-of-Stock
Description
The Edelbrock PN: 60887 Performer RPM Bare NHRA Stock/Super Stock cylinder head is designed for 1955-86 Small-Block Chevy applications. This cylinder head delivers great throttle response and power from 1500 to 6500 rpm. Cast and heat treated at the Edelbrock Foundry and machined at Edelbrock's manufacturing facility in the USA, the Edelbrock head is the best in quality and performance. All Edelbrock cylinder head is designed from scratch using the latest in computer technology by our own highly skilled engineer's. Using highly efficient ports and state-of-the-art combustion chamber shapes, Edelbrock cylinder head offers improved performance throughout the rpm range for great throttle response and top-end horsepower. Top-quality features include threaded inserts in rocker stud and exhaust bolt holes for superior strength and durability, and manganese-bronze valve guides with ductile iron valve seats. These are features that some other companies don't include!
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)
CYL HEAD SBC NHRA LEGAL 64cc STRAIGHT PLUG BARE SINGLE - Part number: EDL-60887 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 60887 - CYL HEAD SBC NHRA LEGAL 64cc STRAIGHT PLUG BARE SINGLE engine-cylinder-head
Data sheet
- Type
- Bare
- Engine Make/Size
- Chevy Small Block (262-400)
- Emission
- Non-Emissions
- Finish
- Cast Aluminum
- Material
- Aluminum
- Usage
- Racing
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Requires Professional Preparation (Bare)
- Family
- Performer RPM
- Series
- Performer RPM
- CNC Ported
- No
- Combustion Chamber Volume
- 64 CCM
- Construction Type
- Bare
- Deck Thickness
- 0.5625 IN
- EGR Port
- No
- Guide Plates Included
- No
- Quantity
- Sold Individually
- Retainer Included
- No
- Valve Springs Included
- No
- Head Casting Number
- N/A
- Exhaust Port Location
- Standard
- Exhaust Runner Volume
- 65 CCM
- Guide Material
- Manganese Bronze
- Intake Runner Volume
- 185 CCM
- Seat Angle
- Exhaust 45 deg/Intake 45 DD
- Seat Material
- Ductile Iron
- Valve Angle
- 23 DD
- Rotor Center Bore Inside Diameter
- Straight
- Spark Plug Hex Size
- 14 MM
- Spark Plug Reach
- 0.750 IN
- Spark Plug Seat Type
- Flat
- Spark Plug Thread Diameter
- 14 MM
Package dimensions
Width: 11.30 inch
Height: 9.10 inch
Depth: 26.00 inch
Weight: 30.35 lb
