XX POLISHED (NR) COMPLETE CORVETTE HEAD

Manufacturer: EDELBROCK
Part number: 608719
MPN: 608719
UPC: 085347990610
Availability: Out-of-Stock
£0.00
Tax included

Call to check: 0044 (0) 1933 225 564

Description

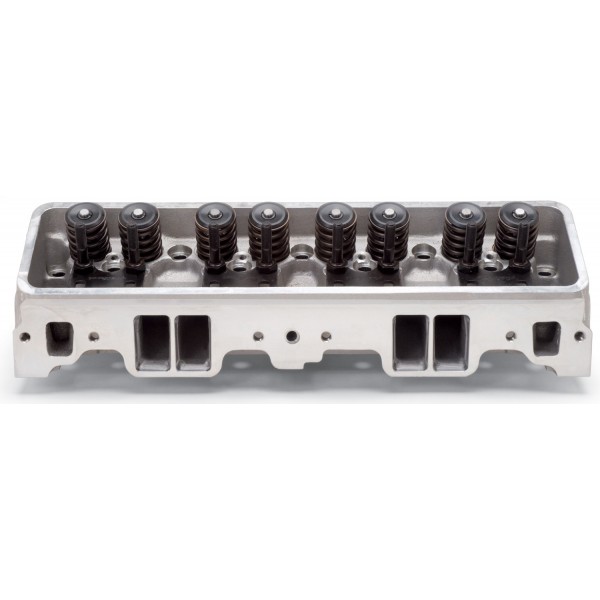

The Edelbrock PN: 608719 Corvette center bolt cylinder head is designed for 1986-91 Tuned Port Injected (T.P.I) 5.7L small-block Chevy Corvette engines originally equipped with center bolt valve covers. Performer center bolt cylinder heads are 50-state street legal and accept factory center bolt valve covers. The intake bolt pattern utilizes the 1986-91 (straight) 90 Deg angle on all bolts. Spark plugs are angled like stock O.E. heads. The Edelbrock Performer heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. They also feature the highest quality intake and exhaust valves and valve springs.

Chevrolet:Small-Block Gen I:302 (4.9L)/327 (5.4L)/350 (5.7L)/400 (6.6L)

XX POLISHED (NR) COMPLETE CORVETTE HEAD - Part number: EDL-608719 - for American Cars - delivery to the UK and the EU

Manufacturer part number: 608719 - XX POLISHED (NR) COMPLETE CORVETTE HEAD engine-cylinder-head

Data sheet

Type
Complete
Engine Make/Size
Chevy Small Block (262-400)
Emission
50 State Legal
Finish
Polished
Material
Aluminum
Usage
Street/Performance
Cylinder Head Type
Center Bolt (87-95)
Grade Type
Performance
Preparation
Bolt On (Not Required)
CNC Ported
No
Combustion Chamber Volume
60.0 CCM
Deck Thickness
0.562 IN
Guide Plates Included
Yes
Head Casting Number
31-6085
CARB Executive Order Number
D-215-94
Exhaust Valve Diameter
1.600 IN
Guide Plate Material
Hardened Steel
Intake Runner Volume
165.0 CCM
Intake Valve Diameter
2.020 IN
Push Rod Diameter
0.312 IN
Rocker Stud Diameter
0.375 IN
Valve Angle
23 DD
Valve Spring Diameter
1.460 IN
Valve Spring Maximum Lift
0.575 IN
Valve Stem Diameter
0.341 IN
Deck Height
9.025 IN

Package dimensions

Width: 10.12 inch
Height: 7.19 inch
Depth: 22.19 inch
Weight: 30.25 lb
