POLISHED (NR) 409 CYL HEAD PERF RPM FOR 61-65 CID CHEVY W BB ENGINES SINGLE COMP
Availability:
Out-of-Stock
Description

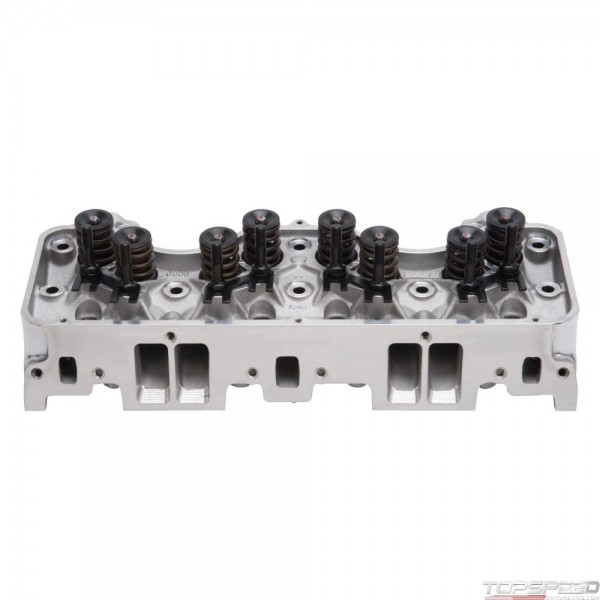

The Edelbrock PN: 608119 Performer RPM cylinder heads are designed for 1958-1965 Chevrolet 'W' Series 348/409 big-block applications. The Edelbrock PN: 608119 Performer RPM heads are perfect for street performance, daily drivers, street rods and muscle cars where seat-of-the-pants performance is needed. These cylinder heads deliver great throttle response and power from 1500 to 6500 rpm. They also feature the highest quality intake and exhaust valves and valve springs. For use on pre-pollution controlled vehicles only.
Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L)
Chevrolet:W Big-Block:348 (5.7L)/409 (6.7L)
POLISHED (NR) 409 CYL HEAD PERF RPM FOR 61-65 CID CHEVY W BB ENGINES SINGLE COMP - Part number: EDL-608119 - for American Cars - delivery to the UK and the EU
Manufacturer part number: 608119 - POLISHED (NR) 409 CYL HEAD PERF RPM FOR 61-65 CID CHEVY W BB ENGINES SINGLE COMP engine-cylinder-head
Data sheet
- Type
- Complete
- Engine Make/Size
- Chevy 348-409
- Emission
- Non-Emissions
- Finish
- Polished Aluminum
- Material
- Aluminum
- Usage
- Street/Hi-Performance
- Cylinder Head Type
- Standard
- Grade Type
- Performance
- Preparation
- Factory CNC Ported
- CNC Ported
- No
- Combustion Chamber Volume
- 16.0 CCM
- Deck Thickness
- 0.562 IN
- Guide Plates Included
- Yes
- Head Casting Number
- 31-6080
- Exhaust Valve Diameter
- 1.720 IN
- Guide Plate Material
- Hardened Steel
- Intake Runner Volume
- 220.0 CCM
- Intake Valve Diameter
- 2.190 IN
- Push Rod Diameter
- 0.375 IN
- Rocker Stud Diameter
- 0.437 IN
- Valve Spring Diameter
- 1.550 IN
- Valve Spring Maximum Lift
- 0.600 IN
- Valve Stem Diameter
- 0.341 IN
- Deck Height
- 9.69 IN
Package dimensions
Width: 36.40 inch
Height: 8.50 inch
Depth: 26.25 inch
Weight: 36.40 lb
